low level, it signals the ODROID-C2 through a digital output pin, trigger-
ing a graceful shutdown. Since the cache/le operations are likely to be
ushed out before the power is turned off, the risk of data loss is low.
Below we illustrate the options of the kit, and how its use can
be controlled. Shown below the fully assembled kit mounted on an
ODROID-C2. Additional details can be found at http://bit.ly/2b8XW77.

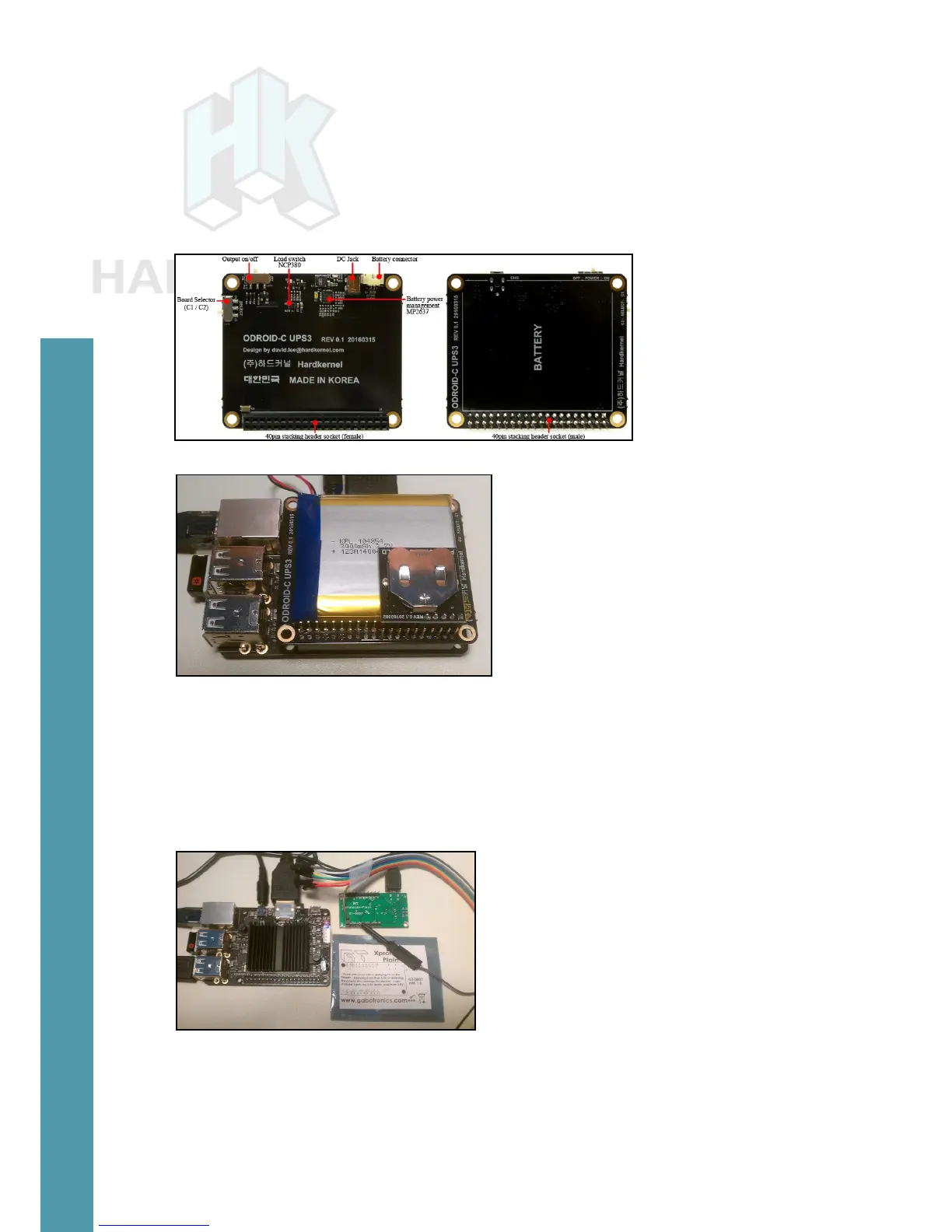

UPS3 PCB
UPS3 installed
Xprotolab Plain
Xprotolab Plain is a kit that includes an Oscilloscope, Logic An-
alyzer, Waveform, Clock generator, 10x hook probe, all in one tiny
lightweight and low cost package.
Xprotolab Plain connected to an ODROID-C2
The main board was developed by Gabotronics, who has pro-
vided an open-source QT5-based cross-platform visualization soft-
ware, which has been ported to the ODROID-C2. To use it with the
ODROID-C2, you must remove the Mali graphics package and install
