Chapter 1 ProStream 9100 Overview
© 2016 Harmonic Inc. All rights reserved. 17 ProStream 9100 Release 17.5, Rev A
Back Panel

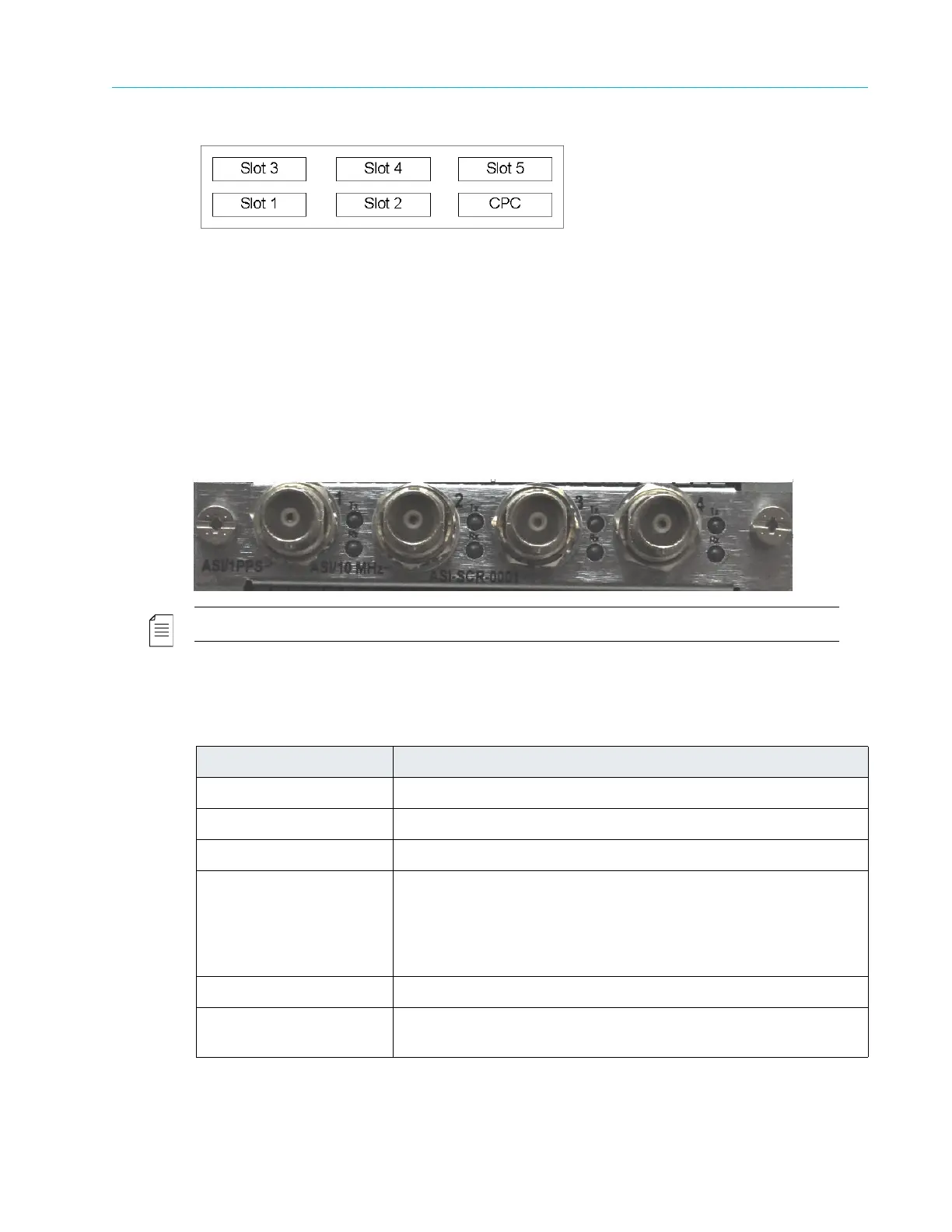

Figure 1–1: ProStream 9100 Slot Arrangement
ProStream 9100 supports the following IOMs:
DVB-ASI SCR-IOM - PRM-9K-ASI-SCR-0001(see DVB-ASI IOM)
Quad GbE IOM - PRM-9K-IOM-GBE-4G (see Quad GbE IOM)
8VSB Modulation - PRM-9K-IOM-8VSB (see 8VSB Modulation Card)
Dual GbE IOM - PRM-9K-IOM-GBE-0002 (see Dual GbE IOM)
DVB-ASI IOM
NOTE: The following information applies to both types of the DVB-ASI card.
Each DVB-ASI IOM card has four independent ports labeled ASI 1 to ASI 4. Each port can be
configured as an input or output port. The following table lists ASI card specifications.
Table 1–10: ASI Card Specifications
Feature Description
Number of Ports Four.
Connector ASI.
Max. input bitrate Up to 156 Mbps per port.
Input extraction 4 x ASI ports. Each port can be configured as an input or an
output port.
In the DVB-ASI-SCR card, port 2 can be configured to receive the
GPS frequency.
Max. output bitrate Female BNC connector.
Multicast content Content elements can be simultaneously routed to multiple output
ports.
