Fan Tray
.

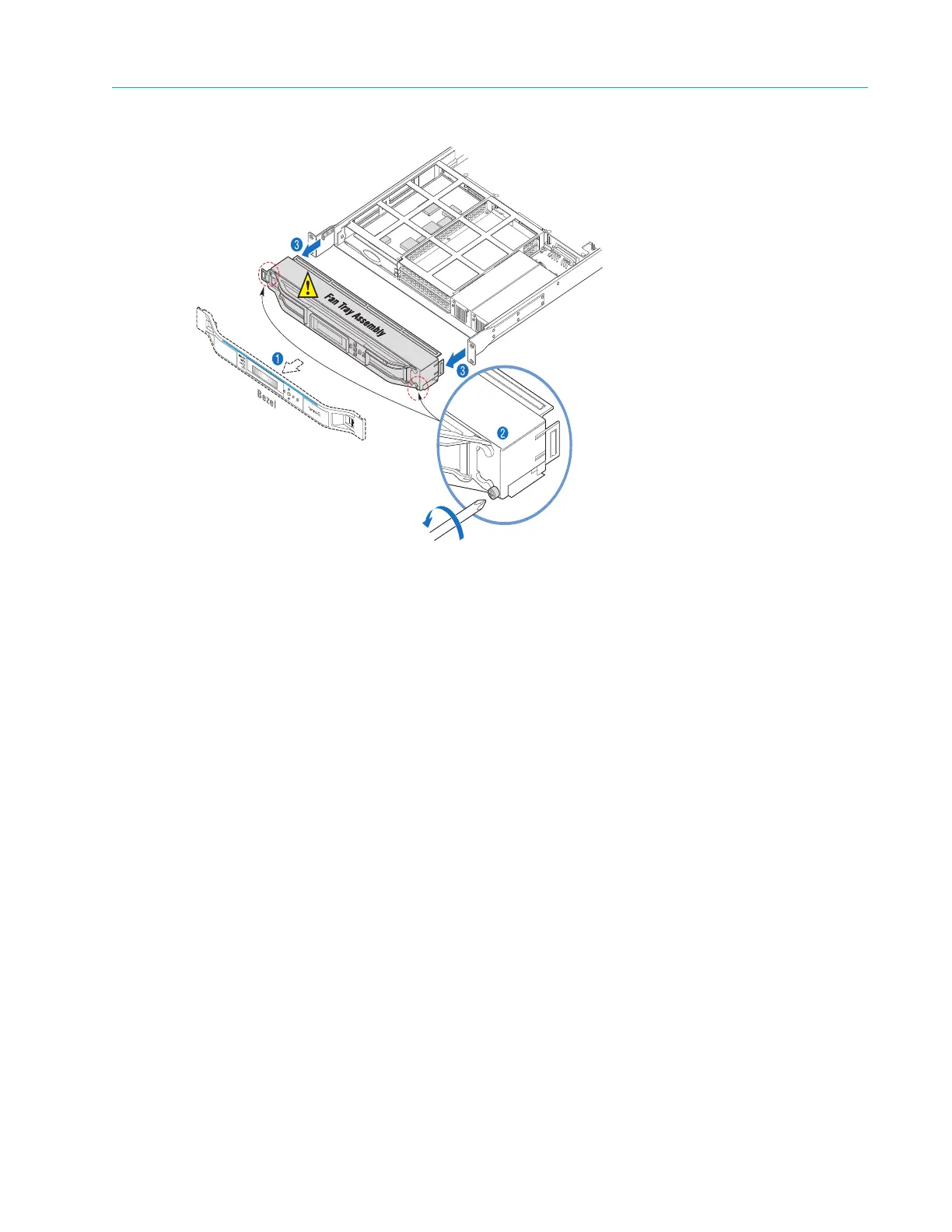

Figure 4–5: Removing the Fan Tray
4. Slide the fan tray assembly away from the chassis.
To replace the fan tray assembly:
1. Replace the fan tray assembly by sliding the tray into the chassis, engaging the PC connector,
identified by the red arrow in Figure 4–6.
