Chapter 4 Maintenance
© 2016 Harmonic Inc. All rights reserved. 55 ProStream 9100 Release 17.5, Rev A
Inserting/Replacing IPC Cards

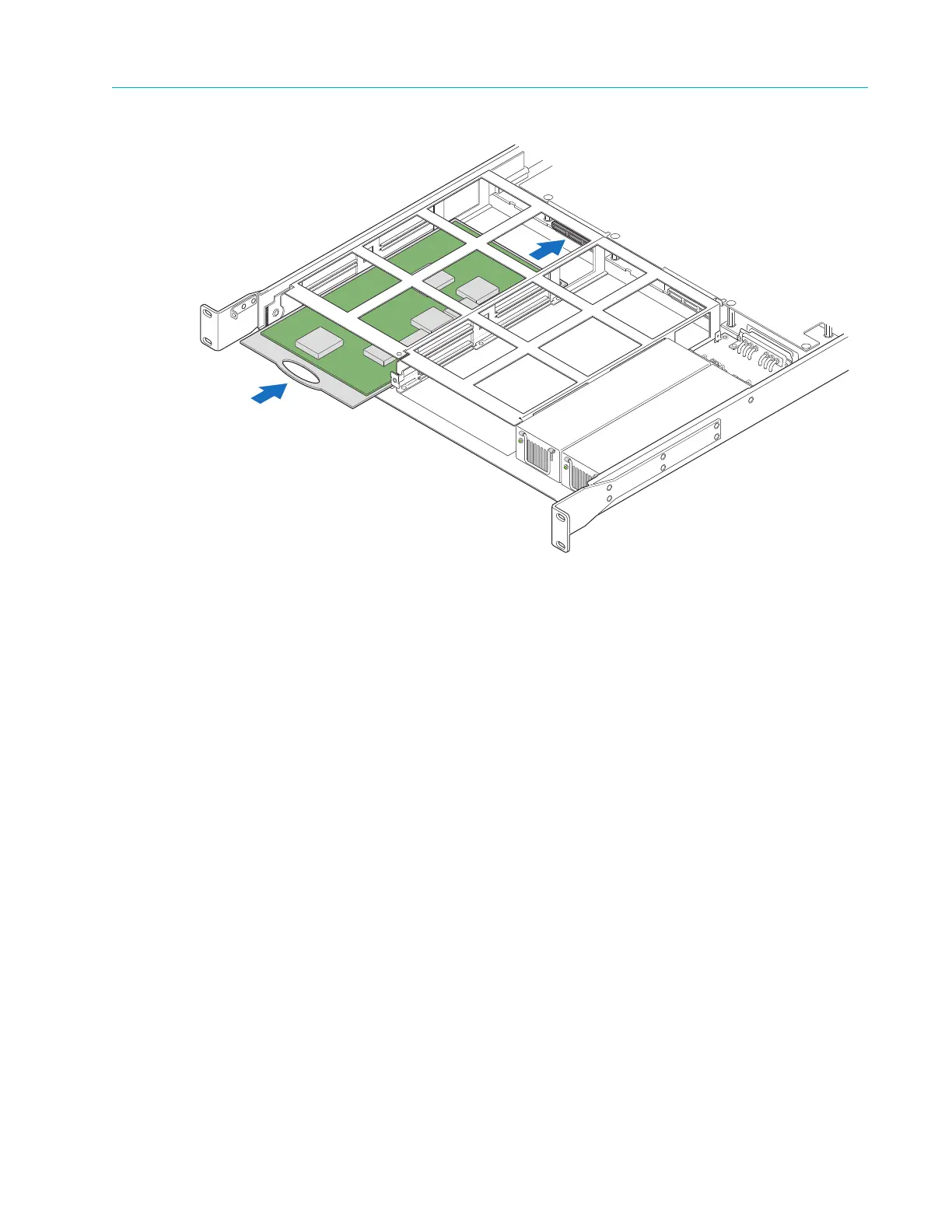

Figure 4–13: Replacing an IPC Card
2. Reattach the card retainer.
3. Reinsert the fan tray as described in Removing and Replacing the Fan Tray.
4. Reinstall the bezel as
described in Removing and Replacing the Bezel.
