Chapter 1: Introduction
Signal Flow
Note
3G HD-SDI in and out are only available if your module has the optional
HMX68OPT
+3G license key.

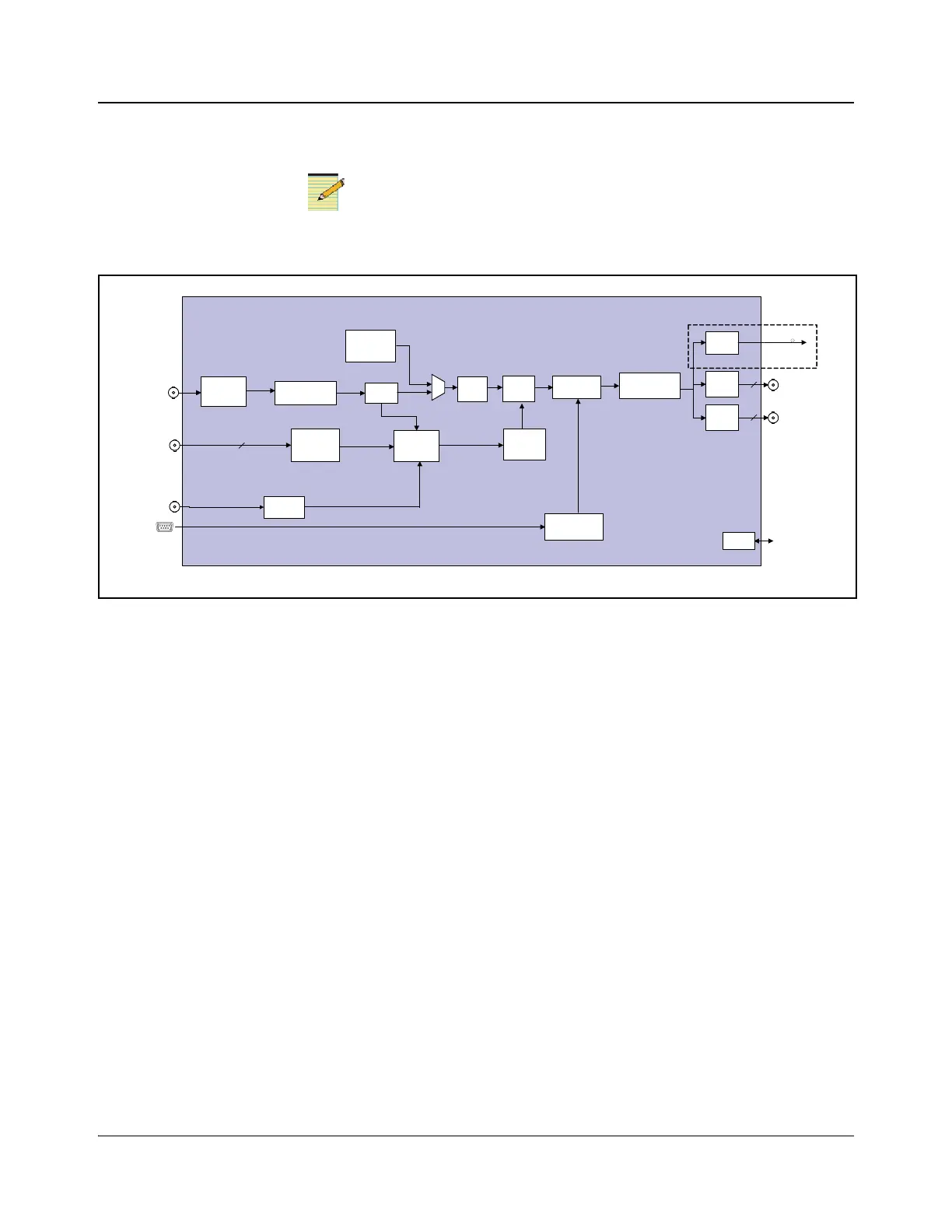

Figure 1-6. HMX6803+ and OP+HMX+ Signal Flow Diagram
1
Available via breakout cable (included).
3G/HD/SD-SDI
Metadata
Video
Delay
Test
pattern
generator
Video
proc
Audio
embed
Data
embed
Sample
rate
converter
Audio
delay
Metadata
router
CCS
&
QSEE
monitoring
&
contr ol
Laser
Driver
Audio
proc amp
OP+SFS+(C)xxD
Equalizer
AES In
8
3G/HD/SD-SDI
2
3G/HD/SD-SDI
2
Driver
Driver
CCS & SNMP
control
DARS DARS
AFD/WSS/VI
Detector
AFD/WSS/VI
Inserter
