Chapter 1: Introduction
Back Connectors

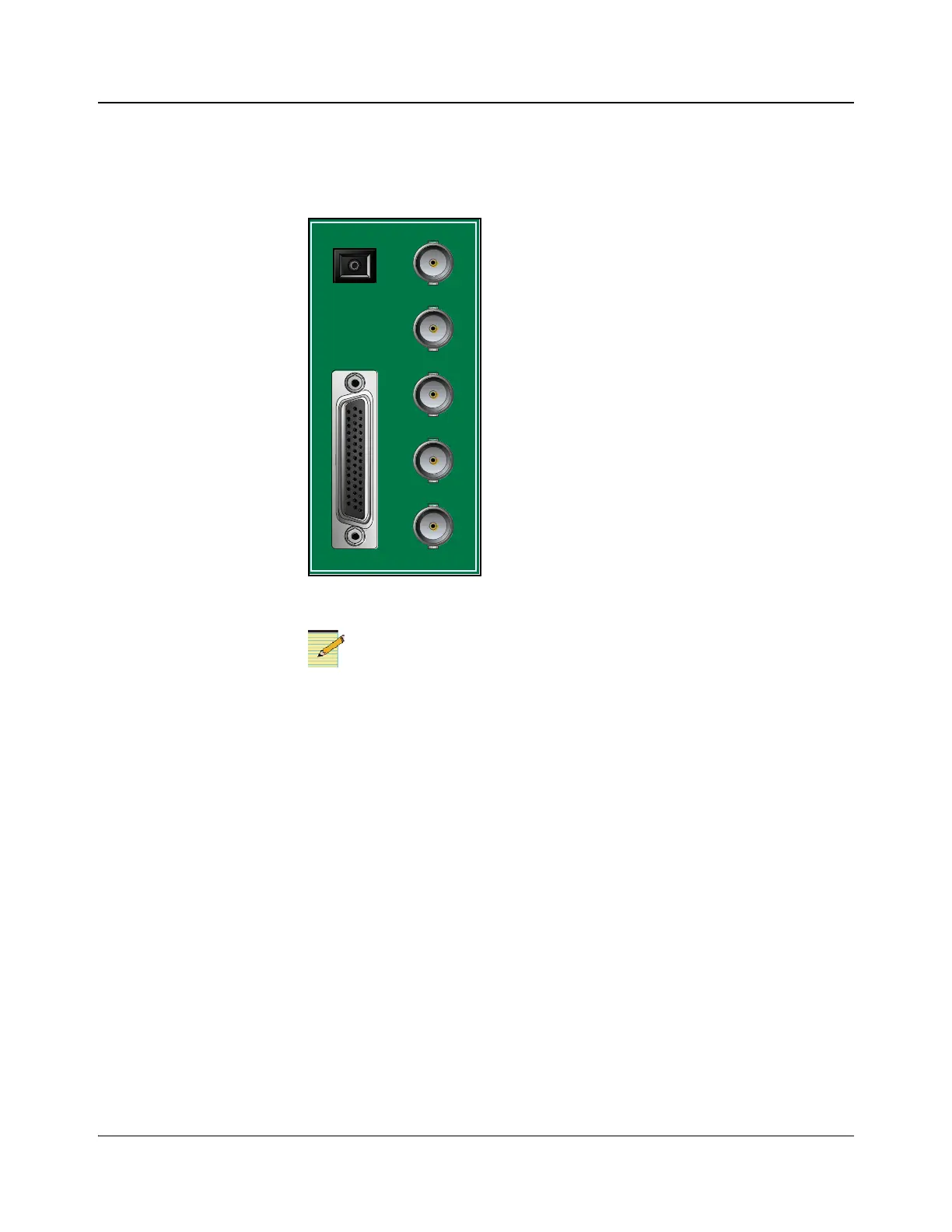

Figure 1-2 shows the double-slot back connector used by HMX6803+ and
OP+HMX+ modules.
Figure 1-2. HMX6803+ and OP+HMX+ Back Connector
Note
To maintain optimal output video signal integrity, terminate unused output
video BNCs with 75Ω terminators.
Breakout Cables
The standard HMX6803+ and OP+HMX+ ship with an unbalanced breakout
cable, pictured in
Figure 1-3. For information on ordering cables, see Table 2-1
on page 14.
If you need to make your own breakout cable, pinouts are listed in Table 1-4,
and pin numbers for the 44-pin connector are listed in Figure 1-4 on page 8.
SDI IN 1
SDI OUT 1
SDI OUT 2
SDI OUT 3
SDI OUT 4
BREAKOUT
Fiber
