HMX6803+ and OP+HMX+ Installation and Operation Manual 61
Copyright © 2009, Harris Corporation
Chapter 3: Operation
LEDs and Alarms
Monitoring LEDs
The HMX6803+ and OP+HMX+ have 11 monitoring LEDs that serve as quick
monitoring references.
Figure 3-10 shows the location of the monitoring LEDs
on an HMX6803+ and OP+HMX+ module. Table 3-11 describes each LED in
more detail.

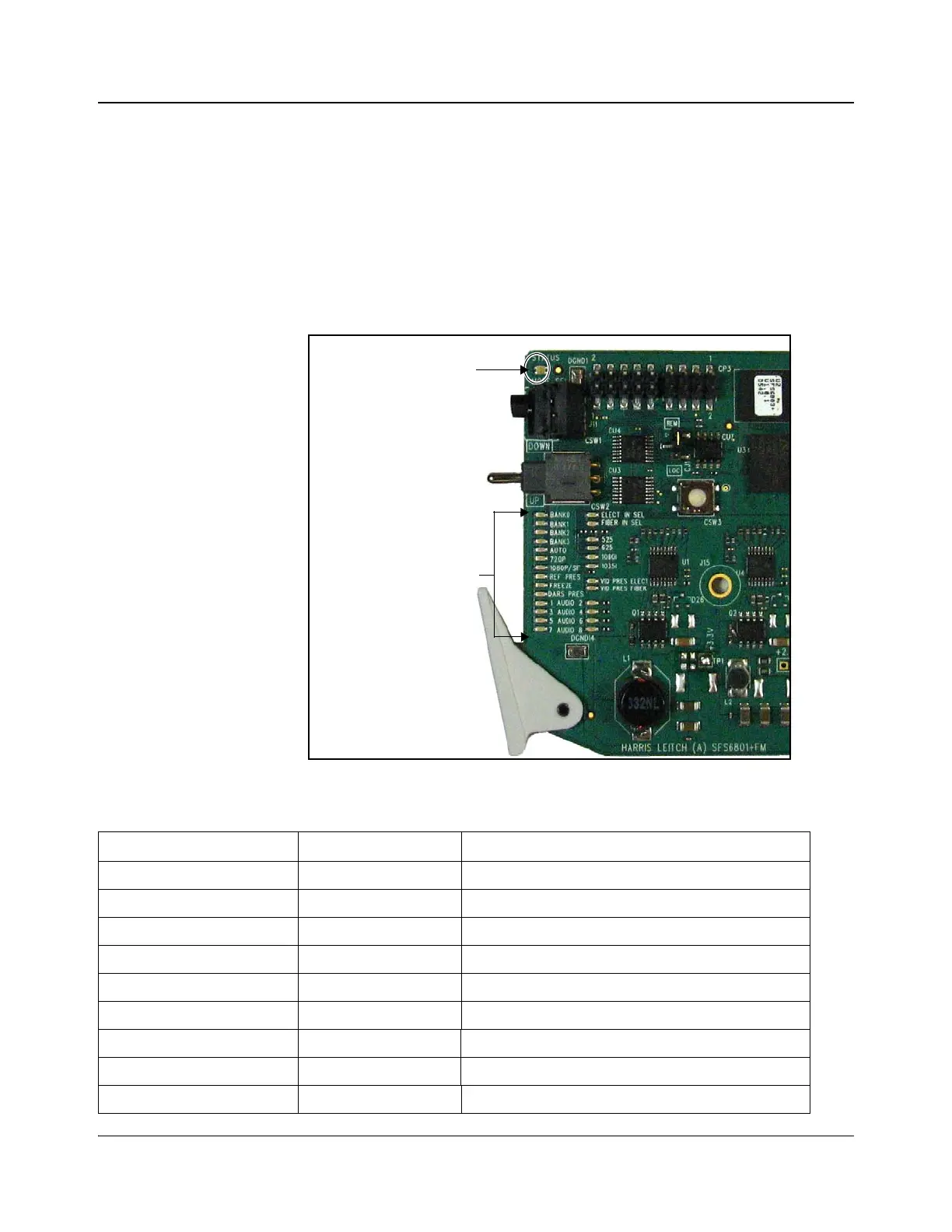

Figure 3-10. Location of HMX6803+ and OP+HMX+ LEDs
Monitoring
LEDs
Module status LED
Table 3-11. Monitoring LEDs
LED Color Indicators Meaning
AUTO Green Auto detection of the SD-SDI input standard is active
720P Green Selected video standard is 720p
1035I Green Unused
1080P/SF Green Selected video standard is 1080p or 1080psf
1080I Green Selected video standard is 1080i
525 Green Selected video standard is 525
625 Green Selected video standard is 625i 50
VID PRES ELECT Green Electrical input video is present
VID PRES FIBER Green Unused
