Hasselblad H5D User Manual

103

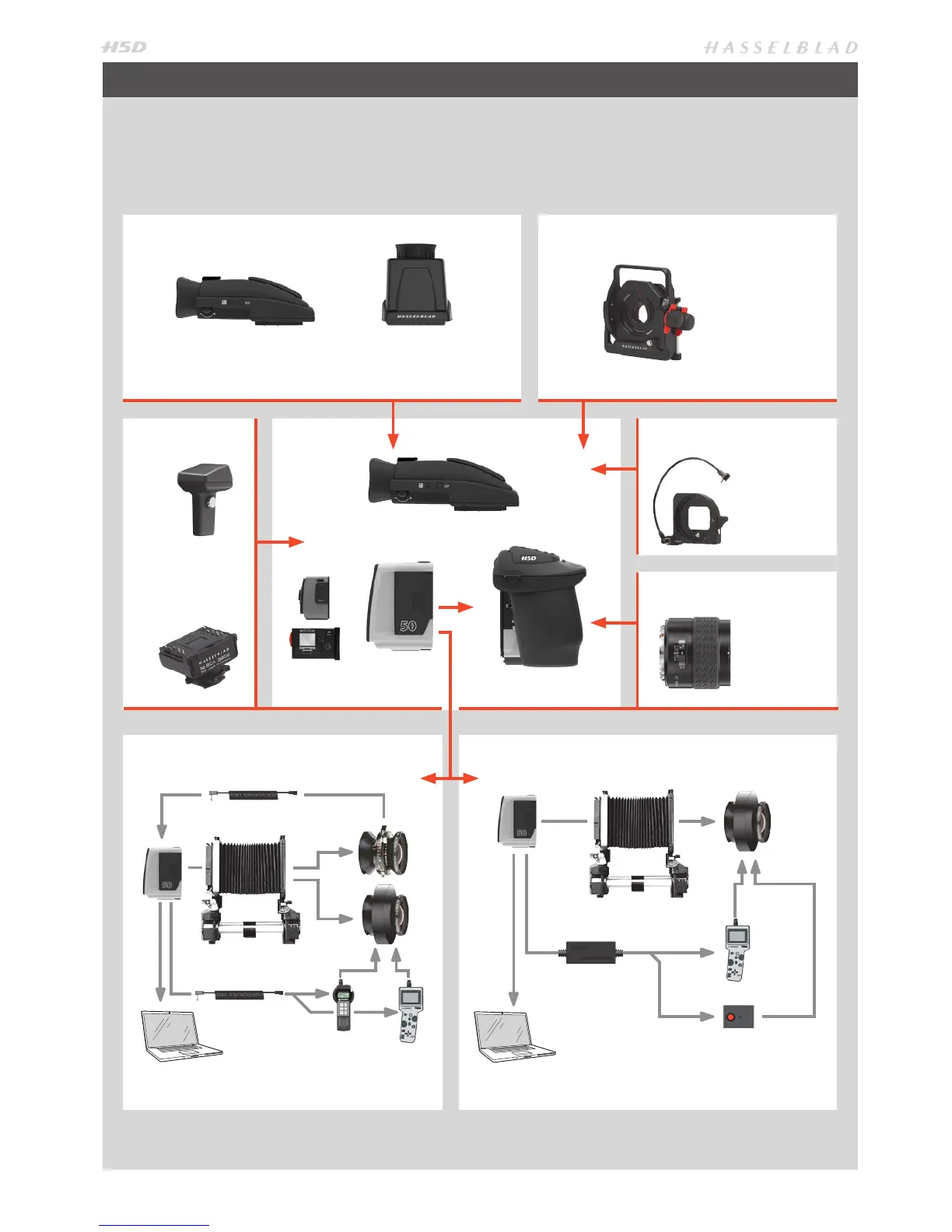

CONNECTIVITY DIAGRAM
Connectivity diagram
Optional V system lenses
Tilt/Shift
Lenses
Camera body
HVM waist-level
viewnder
HV 90x / HVD 90x / HV 90x-II
viewnders
Optional viewnders
H4D Camera
All HC/HCD
lenses, including
extension tubes
and converters
CF lens adapter
HTS 1.5.
For use with HCD28,
HC35, HC50, HC80
and HC100 (including
extension tubes)
Sensor unit
(included)
Viewnder (included)
(type depends on camera model)
Accessories
GIL GPS
receiver
SCA3902 TTL Flash
Adapter
View cameras – Flash sync shutters View cameras – Electronic shutters
Any view camera with
Hasselblad H adapter
Flash sync
input cable
Flash sync
input cable
Host computer with
FireWire, running Phocus
Schneider
Shutter
Control ES
Rollei Lens-
Control S
Host computer with
FireWire, running Phocus
Any view camera with
Hasselblad H adapter
Expose cable
Schneider
electronic shutter
control
Rollei Lens-
Control S
Roll lm and
Instant mag.

Hasselblad H5D Specifications

General

Sensor Type	CCD
ISO Range	50-800
Lens Mount	Hasselblad H Mount
Resolution	50 megapixels
Shutter Speed	1/800 sec to 32 sec
Viewfinder	Interchangeable waist-level or eye-level viewfinder
Display	3.0-inch TFT LCD
Storage Media	CompactFlash (CF) card
Battery	Li-ion Battery
Image Format	RAW
LCD Screen	3.0-inch TFT LCD
Dimensions	153 x 131 x 205 mm
Weight	2290 g
