11
1

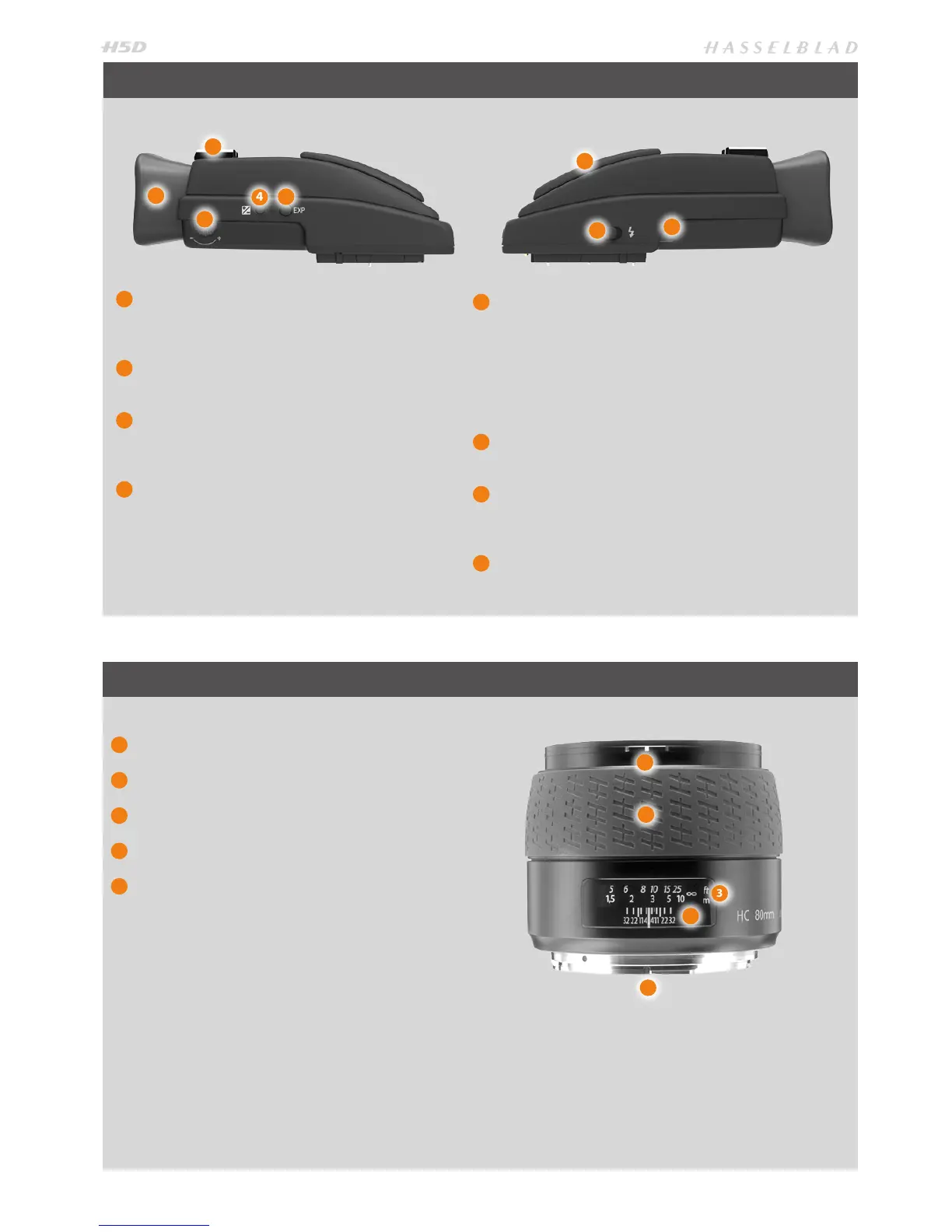

Hot shoe
Connection for automatic ash unit (with SCA 3902
adapter) or for wireless ash connection.
2
Rubber eye cup
Can be exchanged for another model.
3
Eyesight adjustment wheel
The personal eyesight adjustment facility has a diop-
ter range of -5 to +3.5, to suit most users.
4
Exposure compensation button
Press this button to access the EV compensation
screen. Settings are made with either the front or rear
scroll wheels. An EV correction symbol appears on
the grip and viewnder display as conrmation.
5
Exposure mode / metering mode
button
The EXP (Exposure) button accesses the exposure and
metering mode options screen. Settings are made with
the front and rear scroll wheels and the appropriate sym-
bols appear on the grip and viewnder displays accord-
ingly.
6
Integral ash unit
Guide number 12.
7
Integral ash unit release button
Slide the button towards the rear of the camera to raise
the ash. Activation is automatic.
8
Viewnder release button
1
Lens shade index
2
Manual focus ring
3
Focusing distance scales
4
Depth-of-eld scales
5
Lens index
1
2
3
4
5
VIEWFINDER
LENSES
1
2
3
4
5
6
7
8
See more user details in the ‘Lenses’ section in this
manual.
Also, you can download technical data sheets from the
Hasselblad website, or you can download a combined
version - well as a lens booklet that contains a round up of
the available lenses as well as some general information.
