Hawk Gladiator Manual

11

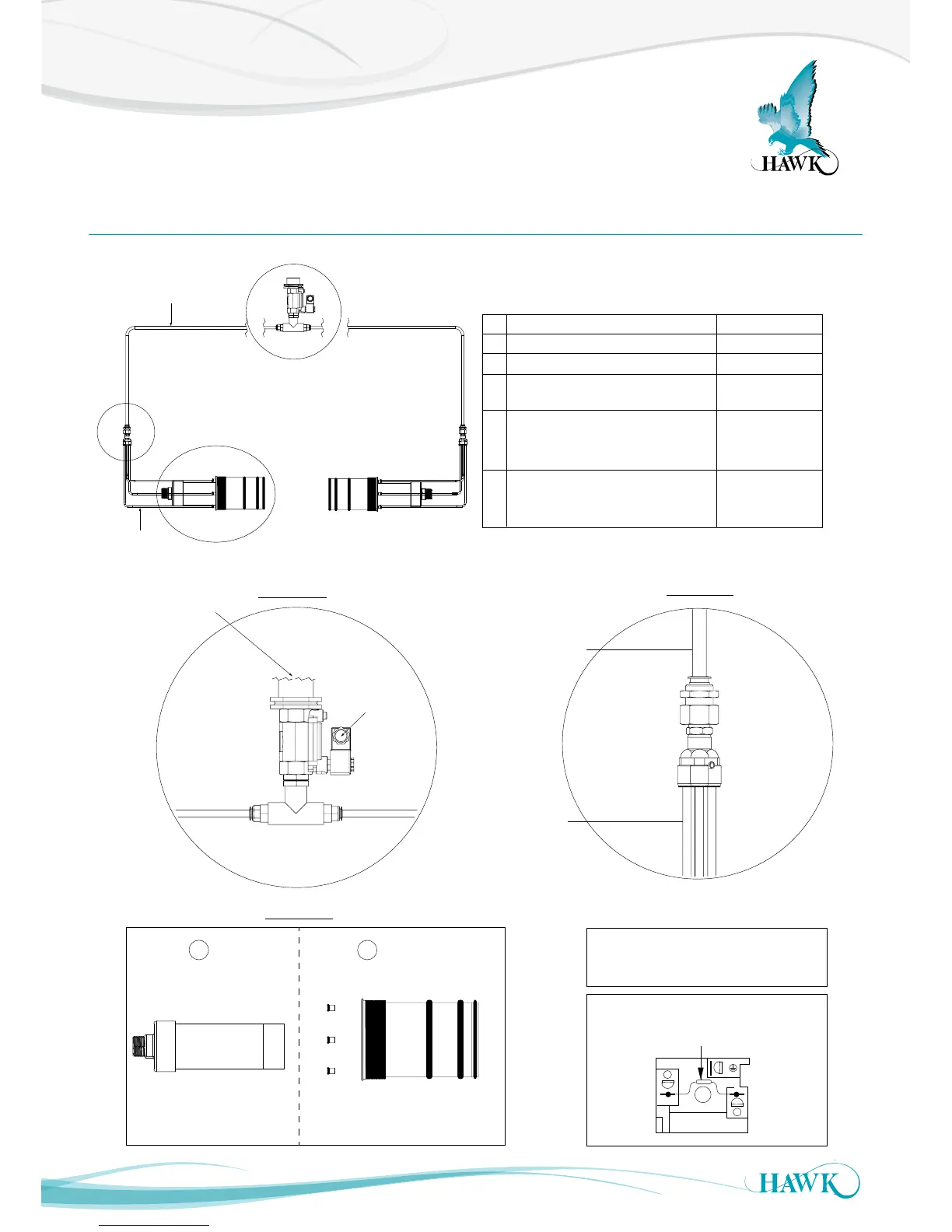

System Overview
Gladiator Acoustic Switch Series
GAWC-SYS2 Acoustic Cleaner Components
A
C
B
D1
D2
1” BSP INT THD on Solenoid
Water connection size
determined by end user
Detail A
Solenoid
Plug Socket
C1
C2
Detail C
Ø12mm Tube
Ø6mm Tube
Detail B
D1
D2
Part Description Part Number
C1 Hawk Transducer
C2 Cleaner Sub-assembly GAWC-X
AWRT15_______AS
Heavy Duty Burkett Valve & SolenoidA
0.5” to 4 x 1/4” connecterB
GAWC-SL2
GAWC-4P
D1 Ø 12mm tube
Supplied in single piece
Total length = distance of part A to part B x 2
(one length per transducer)
D2
Ø 6mm tube
Supplied in single piece
Total length = distance of part B to part C x 8
(Four equal lengths per transducer)
GAWC-12MMLz
GAWC-06MMLz
z = Specify length in metres
1
2
1N4004 Diode
Wiring Diagram for Solenoid Plug Socket
Max. water pressure 16bar (1600kpa)
Min. water pressure 1bar (100kpa)
Note: Full cleaner package GAWC-SYS2 includes all converters,
reducers, connecters, 30m of 12mm tube, 20m of 6mm tube, solenoid
and FA4A-4-ASC flanges. It does not include other eletronics
(transducers, amplifier, junction box).

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
