Hawk Gladiator Manual

6

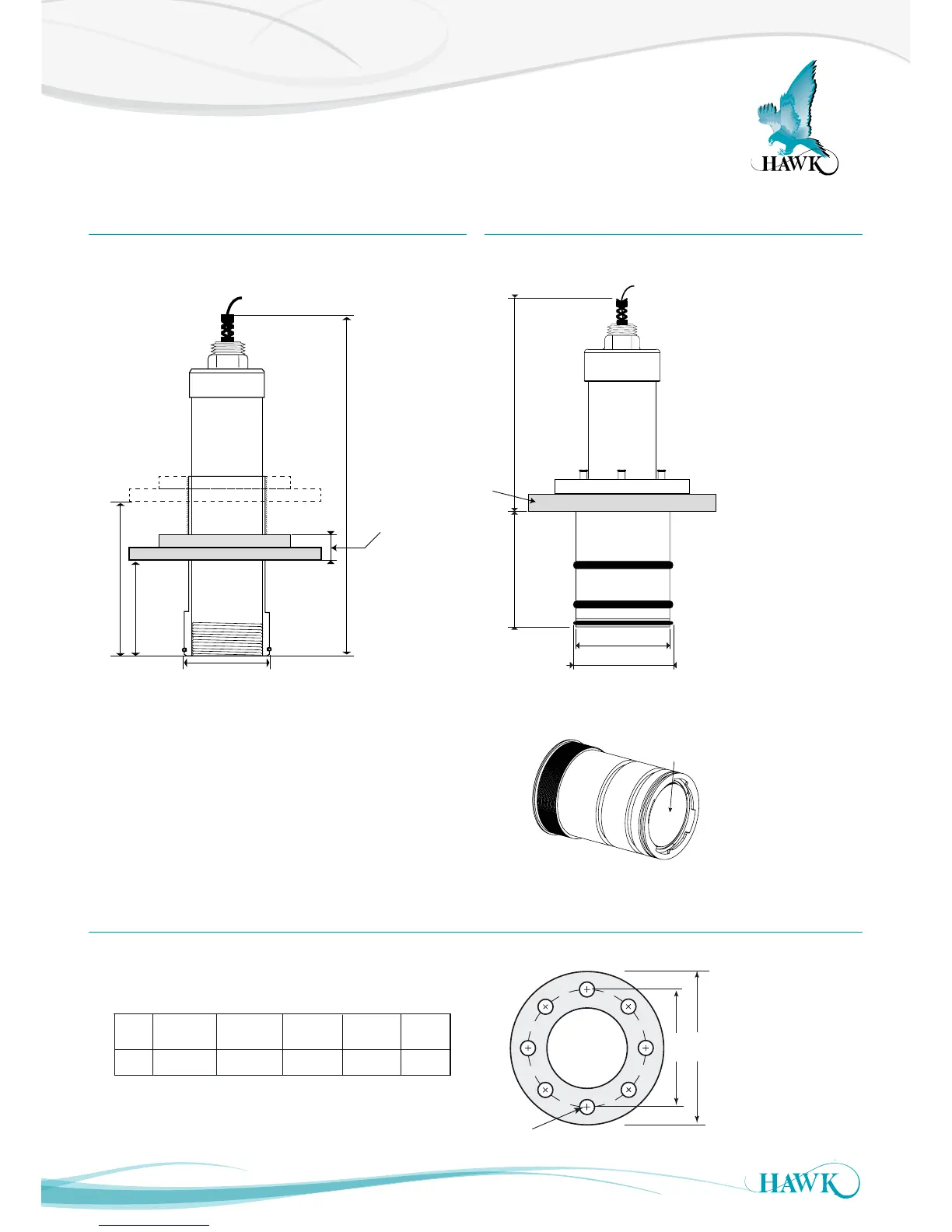

Dimensions
Gladiator Acoustic Switch Series
Remote Transducer
With GAWSLV-3-X and FA4A-4 Flange
Mounting Flange
C
A B
STANDARD 4” ANSI FLANGE DIMENSIONS
FLANGE A (PCD) B (OD)
TYPE mm in. mm in.
C (Hole)
mm in.
FA4 190.5 7.5 228 9.0 19 0.75
SIZE
4”
No.
Holes
8
100mm (3.9”)
102mm (4.0”)
123mm (4.8”)
Flange
3 x O-rings
100mm (3.9”)
min.
95mm (3.7”)
max. 165mm (6.5”)
102mm (4.0”)
ID 100-102mm (3.9-4”)
Pipe with 4” ANSI interface
Adjustable Flange Range
ID 100-102mm (3.9-4”)
Pipe with 4” ANSI interface
350mm 13.8”
350mm
13.8”
100mm
100mm (3.9”)
4” ANSI FLANGE
UHMW
Sleeve
with O-ring
100.00mm (3.9”)
102.00mm (4.0”)
min. 95mm (3.7”)
Locking Ring
Pipe
with
4” ANSI
interface
min.
95mm (3.7”)
max. 165mm (6.5”)
35mm (1.4”)
Remote Transducer with Spray Cleaner
With FA4A-4-ASC Flange
ISOVIEW FOR REFERENCE ONLY
100mm (3.9”)
Spray Sleeve
102mm (4.0”)
123mm (4.8”)240mm (9.4”)
Flange
Sensor face threaded
to end of steel thread
(10mm cavity)
3 x O-rings
ISOVIEW FOR REFERENCE ONLY
100mm (3.9”)
Spray Sleeve
102mm (4.0”)
123mm (4.8”)240mm (9.4”)
Flange
Sensor face threaded
to end of steel thread
(10mm cavity)
3 x O-rings

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
