Hawk Gladiator Manual

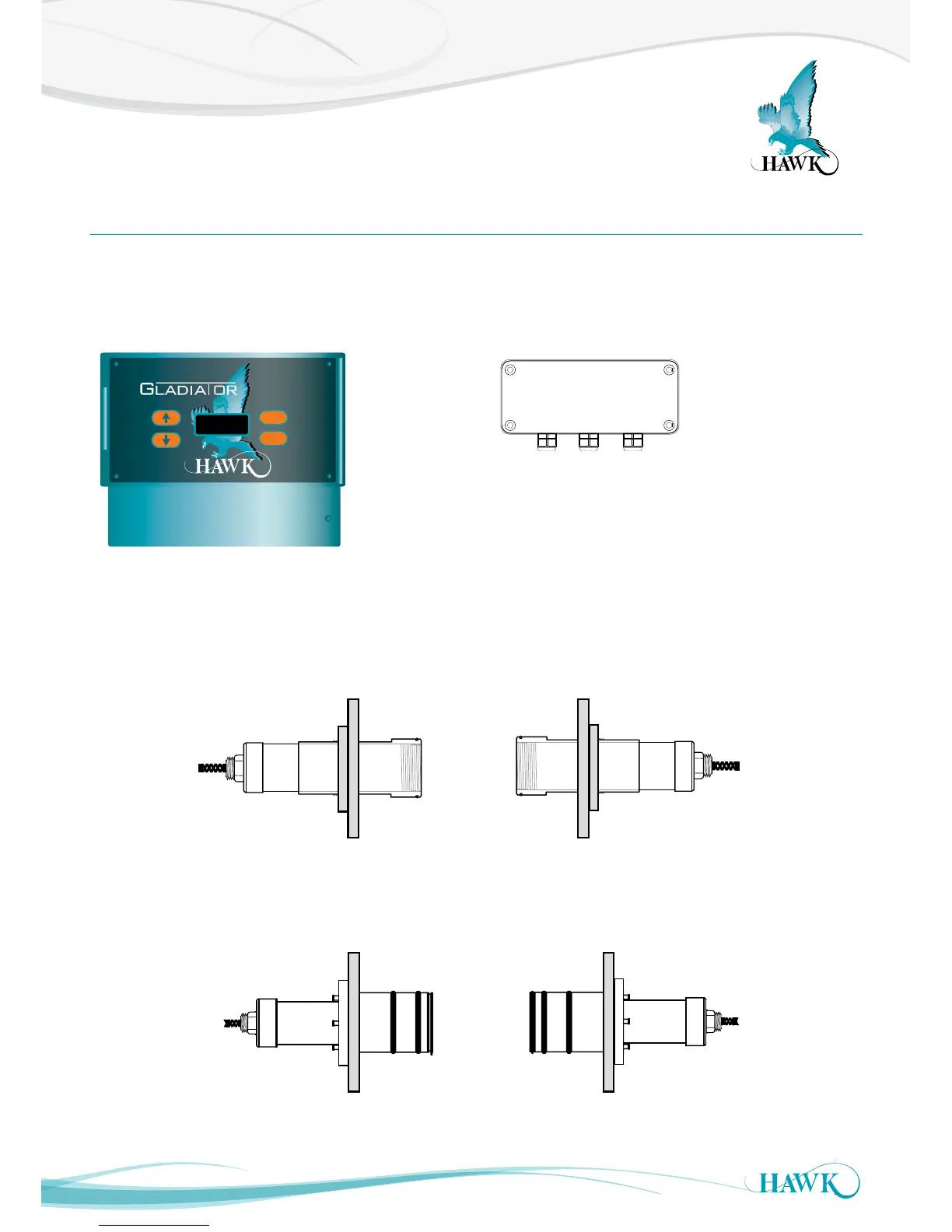

System Components
4
Gladiator Acoustic Switch Series
CAL
RUN
Acoustic Switch 15kHz Remote Transducers with
UHMW sleeve and Flange
Junction Box
RED
BLACK
BLUE
WHITE
RED
BLACK
BLUE
WHITE
RED
BLACK
BLUE
WHITE
or
Acoustic Switch 15kHz Remote Transducers with
Spray Sleeve and Flange
RED
BLACK
BLUE
WHITE
RED
BLACK
BLUE
WHITE
RED
BLACK
BLUE
WHITE
RED
BLK
BLUE
WHIT
RED
BLK
BLUE
WHIT
RED
BLK
BLUE
WHIT
AMP TX1 TX2
4x4mm
Open
170mm (6.7”)
3 x M20 x 1.5
or 3/4” NPT adaptor
TopBottom
87mm (3.4”)
Closed (side)
Hawk
AWRT-JB Junction Box Dimensions
150mm (5.9”)
60mm (2.4”)
80mm (3.1”)
System Components
Gladiator Remote Amplier

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
