Hawk Gladiator Manual

Optional
Junction
Box
(for cable extension)
Cable
Shield
Connect cable
shield to ‘Black’
Terminal at
Gladiator
Remote
Amplfier
Cable Type
BELDEN 3084A
DEKORON IED183AA002
or quality shielded
instrumentation cable
RED
BLK
BLUE
WHIT
RED
BLK
BLUE
WHIT
RED
BLK
BLUE
WHIT
AMP TX1 TX2
To Transducers 1 & 2
Max. 30m cable length
If extending / replacing Transducer
cable terminate cable shielding at TX
BLK terminals
SHLD
RED
BLK
BLUE
WHITE
RED
BLACK
BLUE
WHITE
SENSOR
4 5 6 7
Wiring
Gladiator Acoustic Switch Series
8

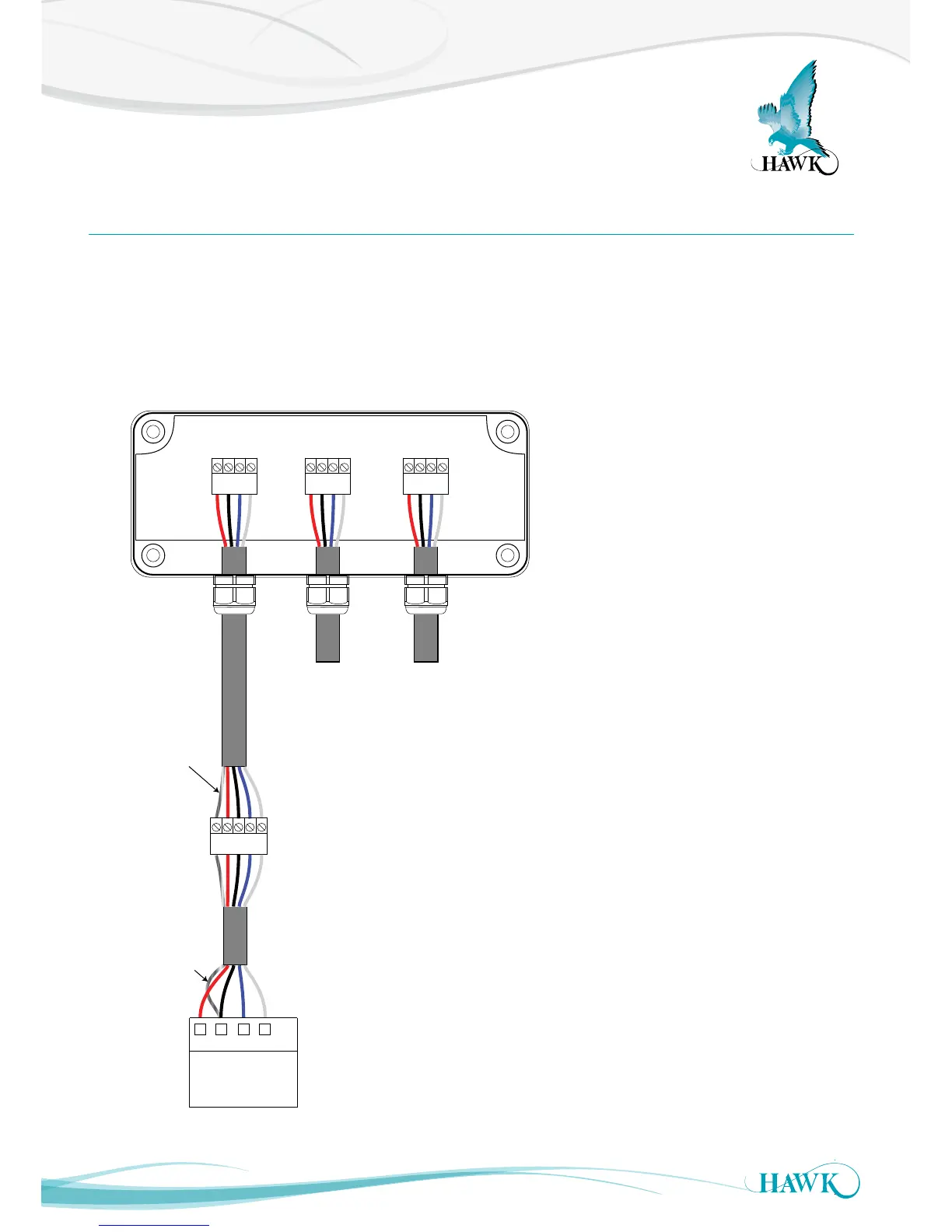

Transducer Cable Extension
Cable extension should only be the single cable run between AWRT-JB Junction Box 'Amplifier' terminal
and the Remote Gladiator Amplifier.
Cable length between Transducer and AWRT-JB HAWK Junction must never exceed 30m.
AWRT-JB Junction Box
Gladiator Remote Amplifier

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
