Hawk Gladiator Manual

Wiring
7
Gladiator Remote Amplier
Gladiator Acoustic Switch Series
AWRT-JB Junction Box
Relay 1 - Output Relay
Relay 2 - FailSafe Relay
TRANSDUCER 1
TRANSDUCER 2
AMPLIFIER
Connect colour to colour
RED
BLACK
BLUE
WHITE
RED
BLACK
BLUE
WHITE
RED
BLACK
BLUE
WHITE
+
–
A
1L
+
–
N
B
RED
BLACK
BLUE
WHITE
Is
SENSOR DC-In AC-In*4-20mA (N/A) COMMS
SLAVE IN MASTER OUT TEST IN
RELAY 1
NC COM NO
RELAY 2
NC COM NO
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
Use long nose pliers to
extract terminals
*AC-In is replaced by 36-60VDC
with Power Input Option ‘C’.
Relay 1 - Output Relay
Relay 2 - FailSafe/Cleaner Relay
+
–
A
1L
+
–
N
B
RED
BLACK
BLUE
WHITE
Is
SENSOR DC-In
AC-In*
4-20mA* COMMS
SLAVE IN MASTER OUT TEST IN
RELAY 1
NC COM NO
RELAY 2
NC COM NO
1 2 3 4 5 6 7 8 9 10 11 12
13 14 15
16 17 18 19 20 21 22 23 24 25 26 27
28 29 30
+24V
1N4004
Diode
1
2
SOLENDOID
*Model dependant

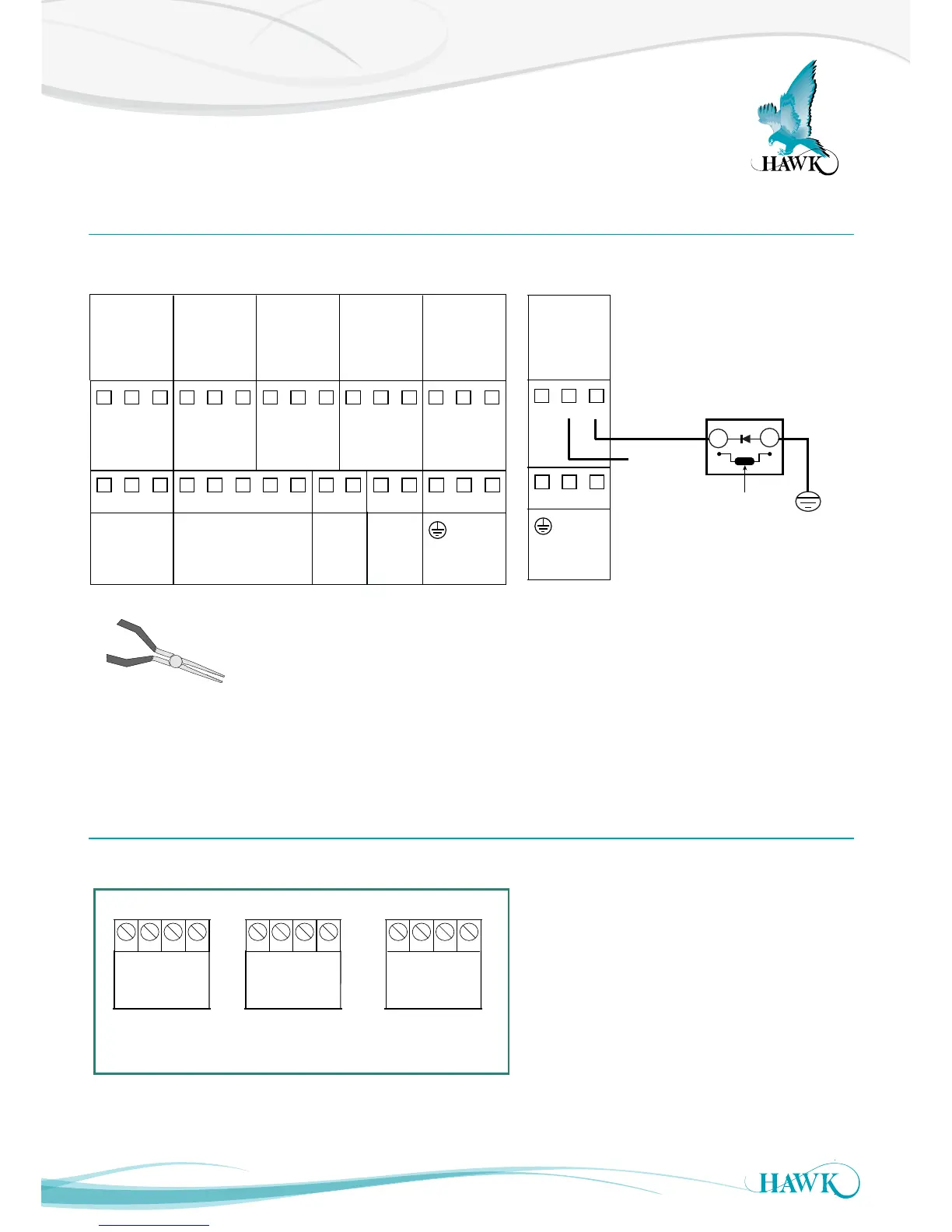

Solenoid wiring for Spray Cleaner
Relay 1 - Output Relay
Relay 2 - FailSafe Relay
TRANSDUCER 1
TRANSDUCER 2
AMPLIFIER
Connect colour to colour
RED
BLACK
BLUE
WHITE
RED
BLACK
BLUE
WHITE
RED
BLACK
BLUE
WHITE
+
–
A
1L
+
–
N
B
RED
BLACK
BLUE
WHITE
Is
SENSOR DC-In AC-In*4-20mA (N/A) COMMS
SLAVE IN MASTER OUT TEST IN
RELAY 1
NC COM NO
RELAY 2
NC COM NO
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

Hawk Gladiator Specifications

Power

operating voltage	12-30VDC, 90-260VAC, 36-60VDC
power consumption	<0.8W @ 24VDC, <5VA @ 240Vac, <3VA @ 115Vac

Operating Environment

maximum operating pressure	2 BAR
operating temperature for remote electronics	-40°C (-40°F) to 80°C (176°F)
operating temperature for remote sensors	-20°C (-4°F) to 80°C (176°F)
enclosure sealing for remote electronics	IP67 (NEMA 4x)
enclosure sealing for remote sensors	IP68

Weight and Dimensions

transducer to amplifier separation	Up to 500m (1640ft)
typical weight for 15kHz transducer	8 kg
typical weight for remote amplifier	1 kg
