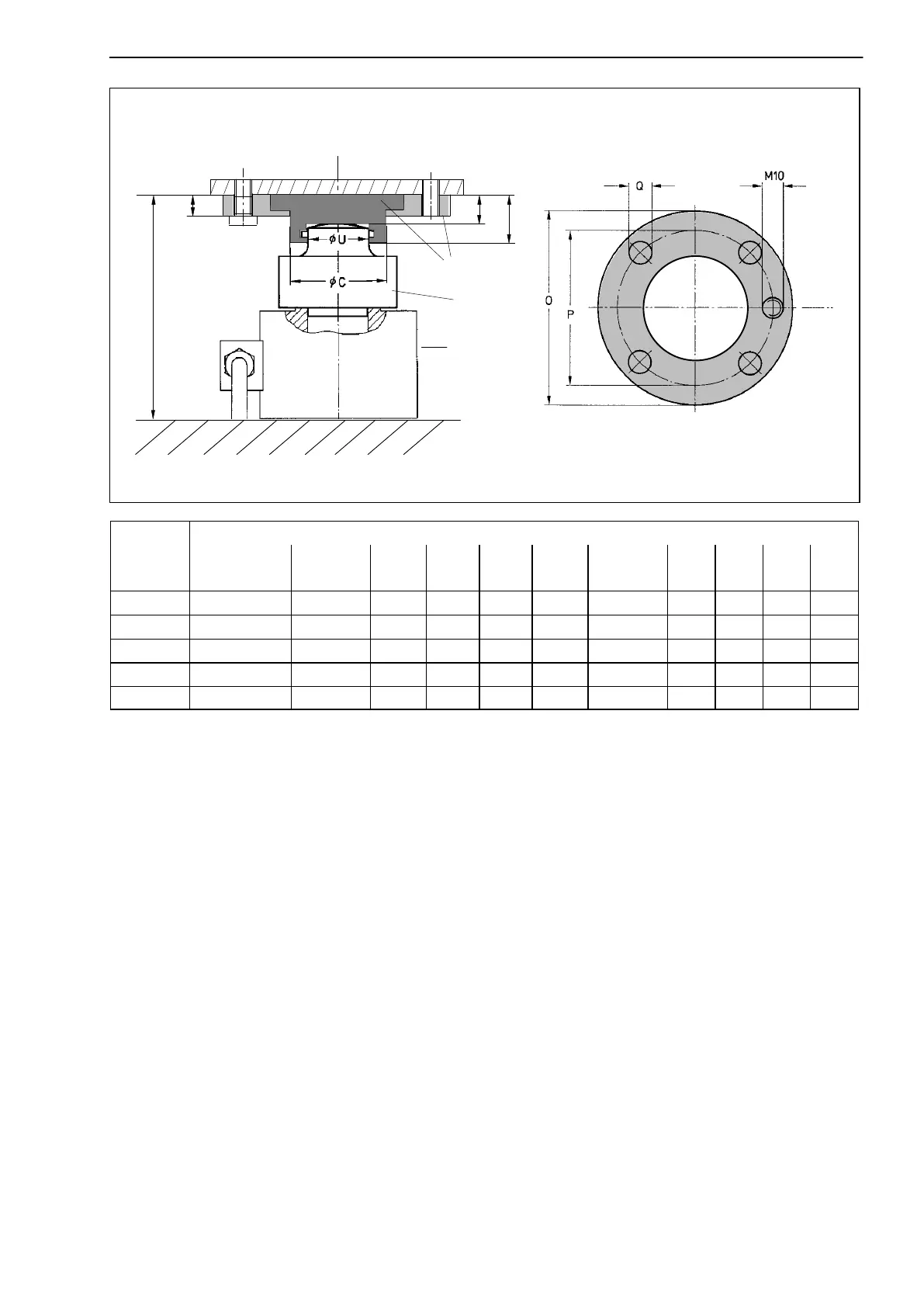

Pendle bearing support EPO3 (Compensation and oblique setting by displacement of the
load introduction) 2x EPO3 and 2x ZL and 1x C6A are needed
* Shown with load buttons ZL 0.2 MN − 2 MN
a
C6A *
D
N
ZL
E
EPO3
Nominal
force
Dimensions in mm
EPO3
Order no.
Weight in
kg
C D E N O P Q U
−0.2
a
200 kN 1-EPO3R/20T 1.2 47.9 27.5 20 14 114 90 13 32 125
500 kN 1-EPO3/50T 3.4 81.9 50 39.5 20 148 120 17 44 144.5
1 MN 1-EPO3/100T 3.2 81.9 50 39.5 20 148 120 17 64 219.5
2 MN 1-EPO3/250T 13.0 139.5 80 67.5 25 225 190 22 85 247.5
5 MN 1-EPO3/500T 27.0 169.8 103 90 33 270 220 26 130 250
