3.5.4 Channel function “scene”

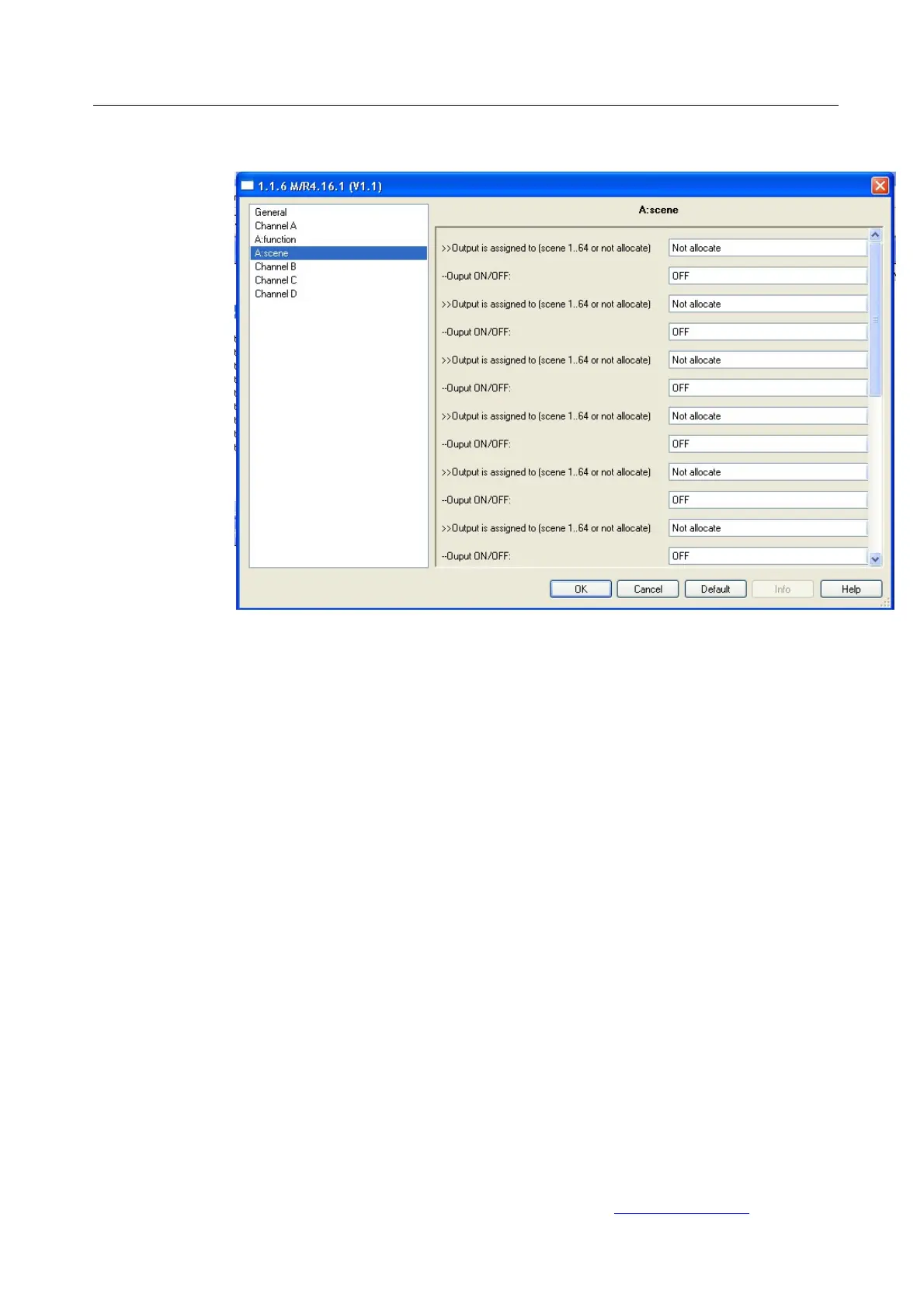

Fig9: Scene function windows
10 scenes can be configured for each channel. Each scene can be
set to ON or OFF.
The scene is called by receive a value of telegram from the bus which
the value of the telegram(bit 0-6) equal a scene number, The bit
seven of value of the telegram must 0 .
The scene is stored by receive a value of telegram from the bus which
the value of the telegram(bit 0-6) equal a scene number, The scene
state is the current switch state. The bit seven of value of the
telegram must 1
---Output is assigned to (scene 1...64 or not allocate)
Options: not allocate
Scene NO.01
Scene NO.02
………………
Scene NO.64
The scene number is between 1 and 64, the value is between
0 and 63 or not allocate.
