HDL KNX / EIB Switch Actuators
_____________________________________________________________________________________
Guangzhou Hedong Electronic Co.,Ltd (HDL)
www.hdlchina.com 42/58

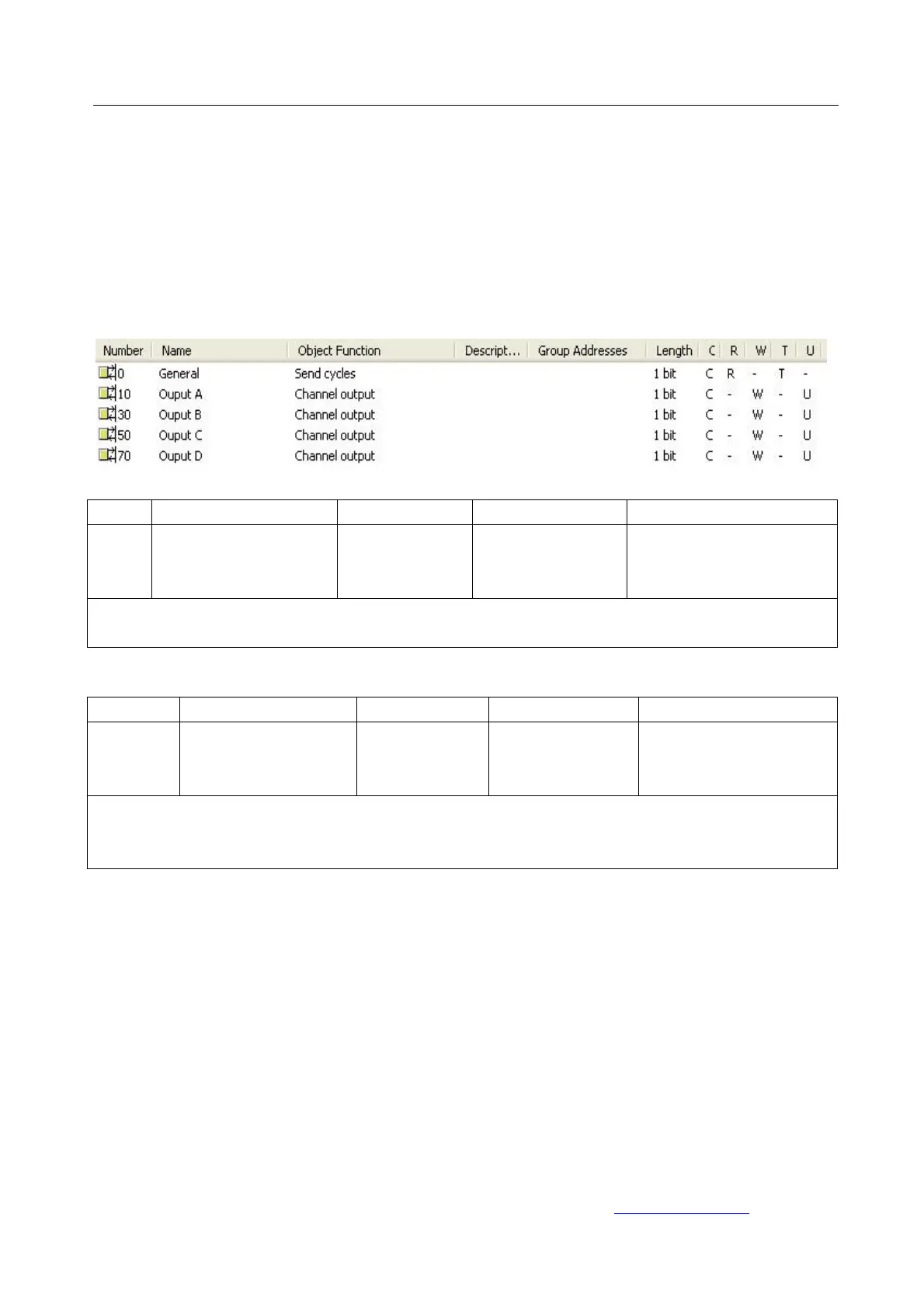

4-Communication objects description
In this section will introduce the communication objects, The objects
will show by setting the function enable .
Note: In following sections the N=A,B,C…
4.1 Objects “General” and “Output N”
NO. Object name Function Flags Data type
0
General Send cycles C R T EIS1
DPT 1.003
1bit
This communication object is always active and valid. invert the value send telegram to
bus in next frame. e.g. last telegram value is “1”, the next telegram value is “0”
Table 3.General object
NO. Object name Function Flags Data type
10,30…
Output N Channel
output
C W U EIS1
DPT 1.001
1bit
These communication objects of the channel output used for ON/OFF an channel, the
switch output ON when the object receive the value is “1”. the switch output OFF when
the object receive the value is “0”
Table 4 Output objects
4.2 All objects with channel “N”
