HDL M/R4.16.1 User Manual

HDL KNX / EIB Switch Actuators
_____________________________________________________________________________________
Guangzhou Hedong Electronic Co.,Ltd (HDL)
www.hdlchina.com 5/58
1.1-Product Function

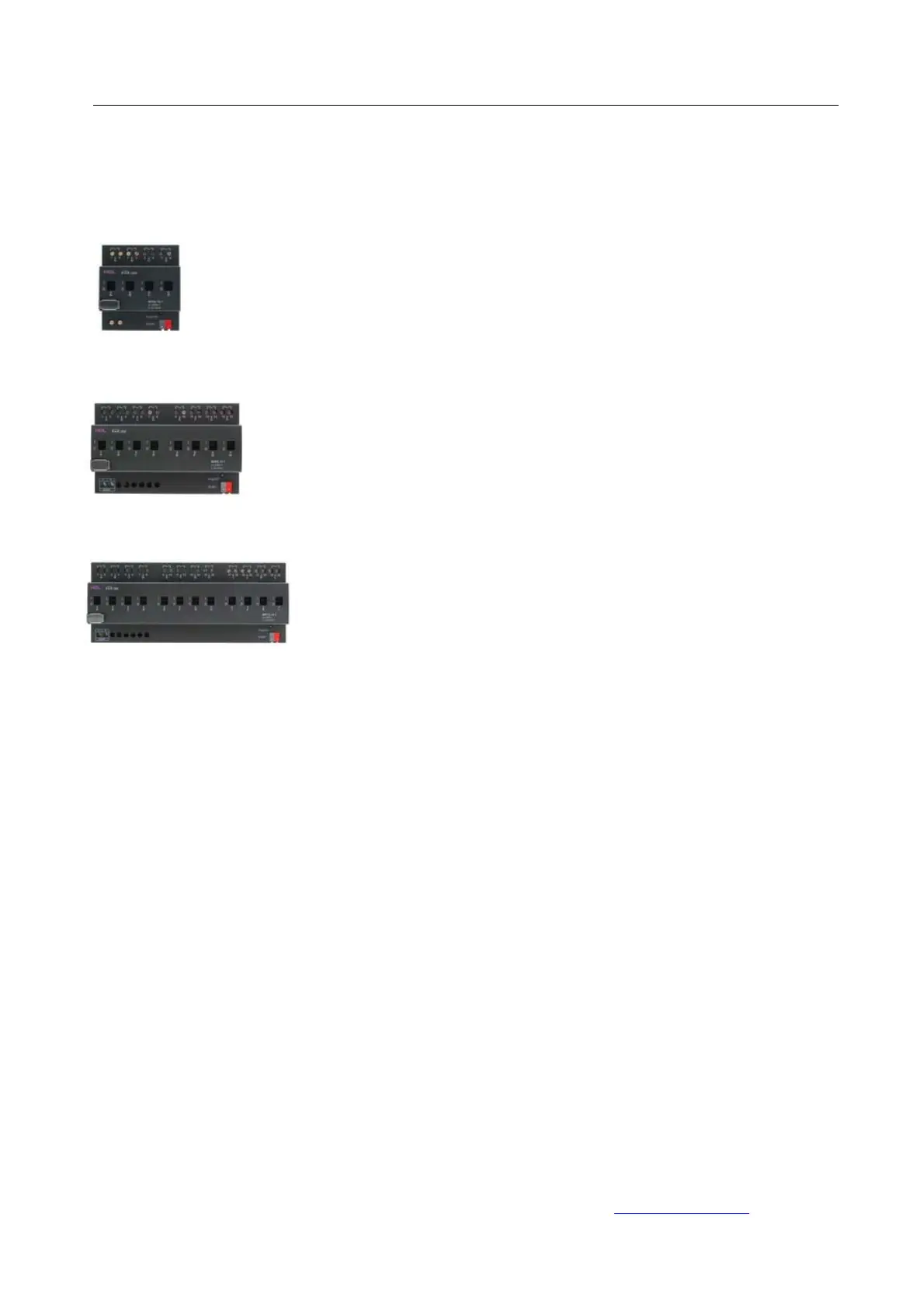

The switch Actuators can switch for 4, 8 and 12 channels
independent AC/DC loads. The outputs for MAX 16 A be
switched ON or OFF on every output channel and can manually
switch too. The M/R4.16.1 no need require an additional power
supply. The M/R8.16.1,M/R12.16.1 require an additional 24VDC
power supply if need frequently operation all of channel same
time, but normal operation is good also if there is no additional
power supply. The following functions can be set individually for
each output channel:
1-Channel s tate response.
2-Channel state after bus voltage failure and recovery
3-Time function
* Flashing
* Staircase light
* Delay
*4-Scene
* scene number:1-64
* 5-Threshold
* Two threshold value
6-Curetain
* top/left<->bottom/right
7-Logic
* AND/OR/XOR/GATE
8-Heat control
* PWM
The type of the switch Actuator Description as following:
M/Rx.y.z
* x=channel number
* y=Current 16A/channel
* z=Application Version
