HDL M/R4.16.1 User Manual

HDL KNX / EIB Switch Actuators
_____________________________________________________________________________________
Guangzhou Hedong Electronic Co.,Ltd (HDL)
www.hdlchina.com 29/58
3.5.5.1 Channel function “1byte threshold”

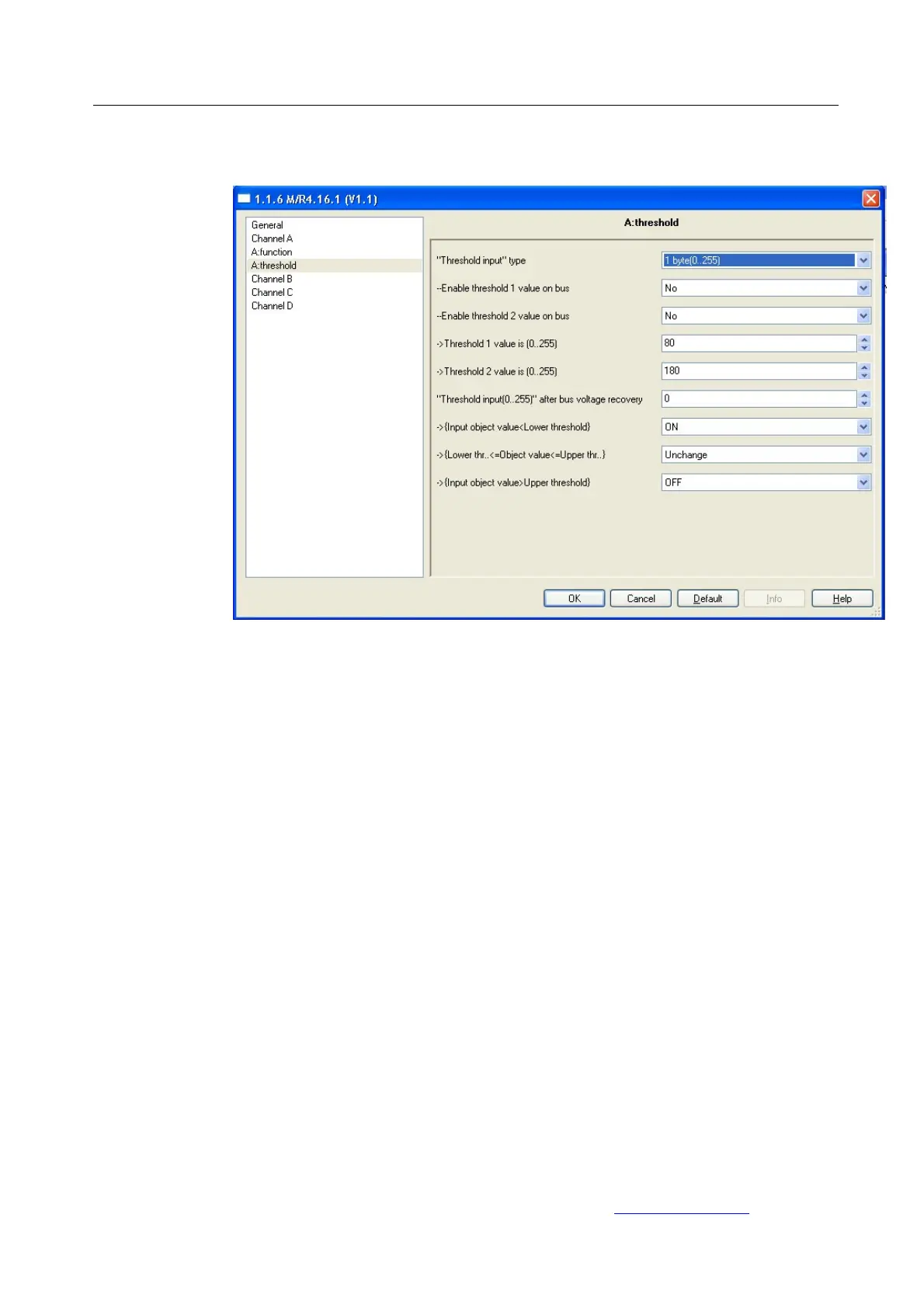

Fig10: 1byte Threshold type function windows
The threshold include two threshold value are the threshold1 and
threshold2.The threshold1 and threshold2 can be set between 0 and
255. The switch state changed according to the input threshold value
of receiving from bus , it has three ways to compare with the value of
threshold.
---Enable change threshold 1 over bus:
Options: YES
NO
NO: Do not allow change threshold1 via bus.
YES: Allow change threshold1 via bus.
---Enable change threshold 2 over bus:
Options: YES
NO
NO: Do not allow change threshold2 via bus.
YES: Allow change threshold2 via bus.
