HDL KNX / EIB Switch Actuators
_____________________________________________________________________________________
Guangzhou Hedong Electronic Co.,Ltd (HDL)
www.hdlchina.com 54/58
OR
XOR
Note: N=channel A, B. C…
L=Logic connection
R= result

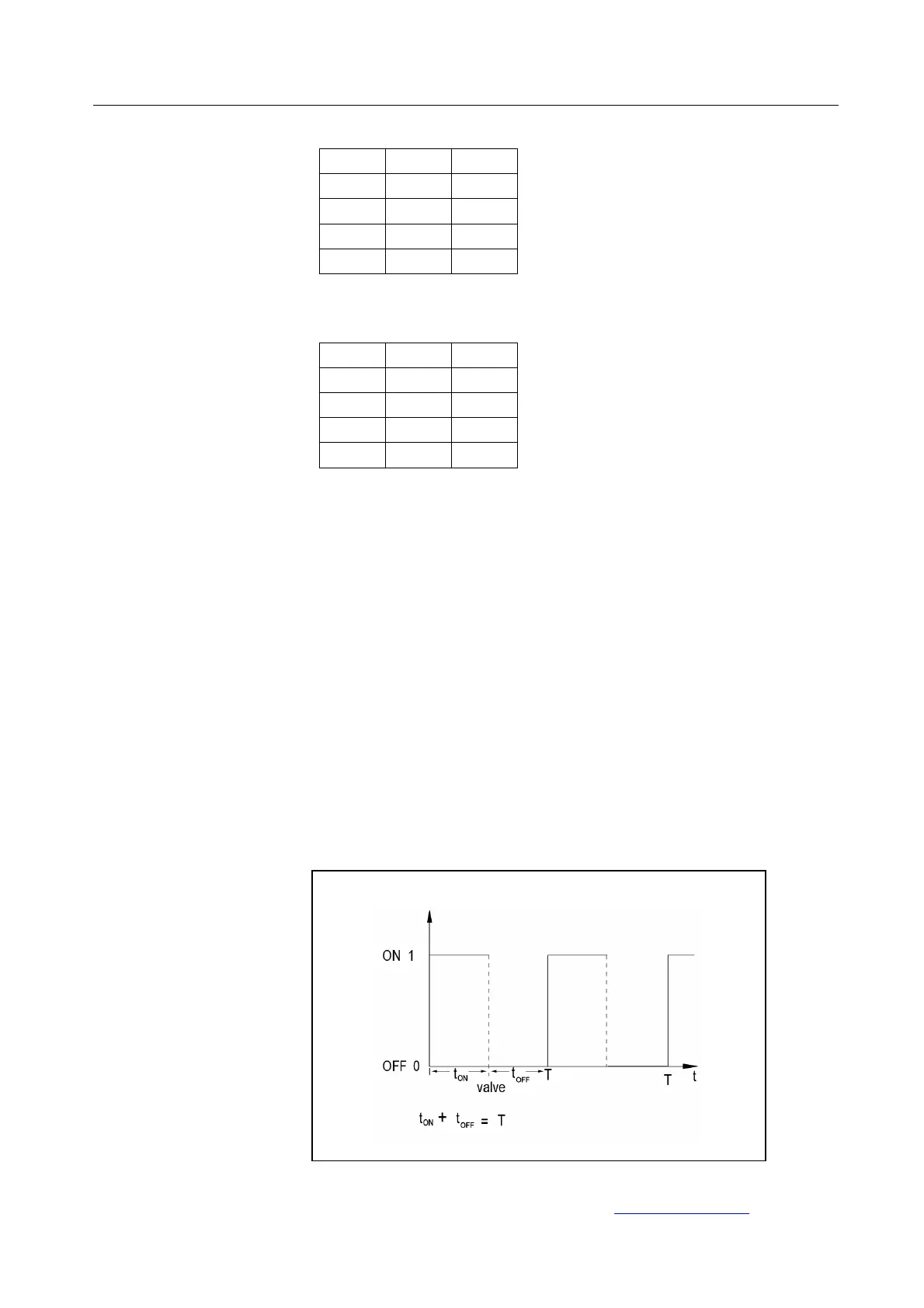

5.6 PWM control
Type of control can be control as 1bit or 1byte.
1bit PWM(1-start/0-stop): The PWM start and switch ON by the
value of receiving telegram “1” , and stop by “0”.
1byte(255-ON/0-OFF/other valve): the switch ON always by the
value of receiving telegram “255”, the switch OFF by the value of
receiving telegram “0”. The PWM runs and pulse width of PWM is set
according to the value of receiving telegram (1 to 254 )
N L R
0 0 0
0 1 1
1 0 1
1 1 1
N L R
0 0 0
0 1 1
1 0 1
1 1 0
