HDL KNX / EIB Switch Actuators
_____________________________________________________________________________________
Guangzhou Hedong Electronic Co.,Ltd (HDL)
www.hdlchina.com 48/58

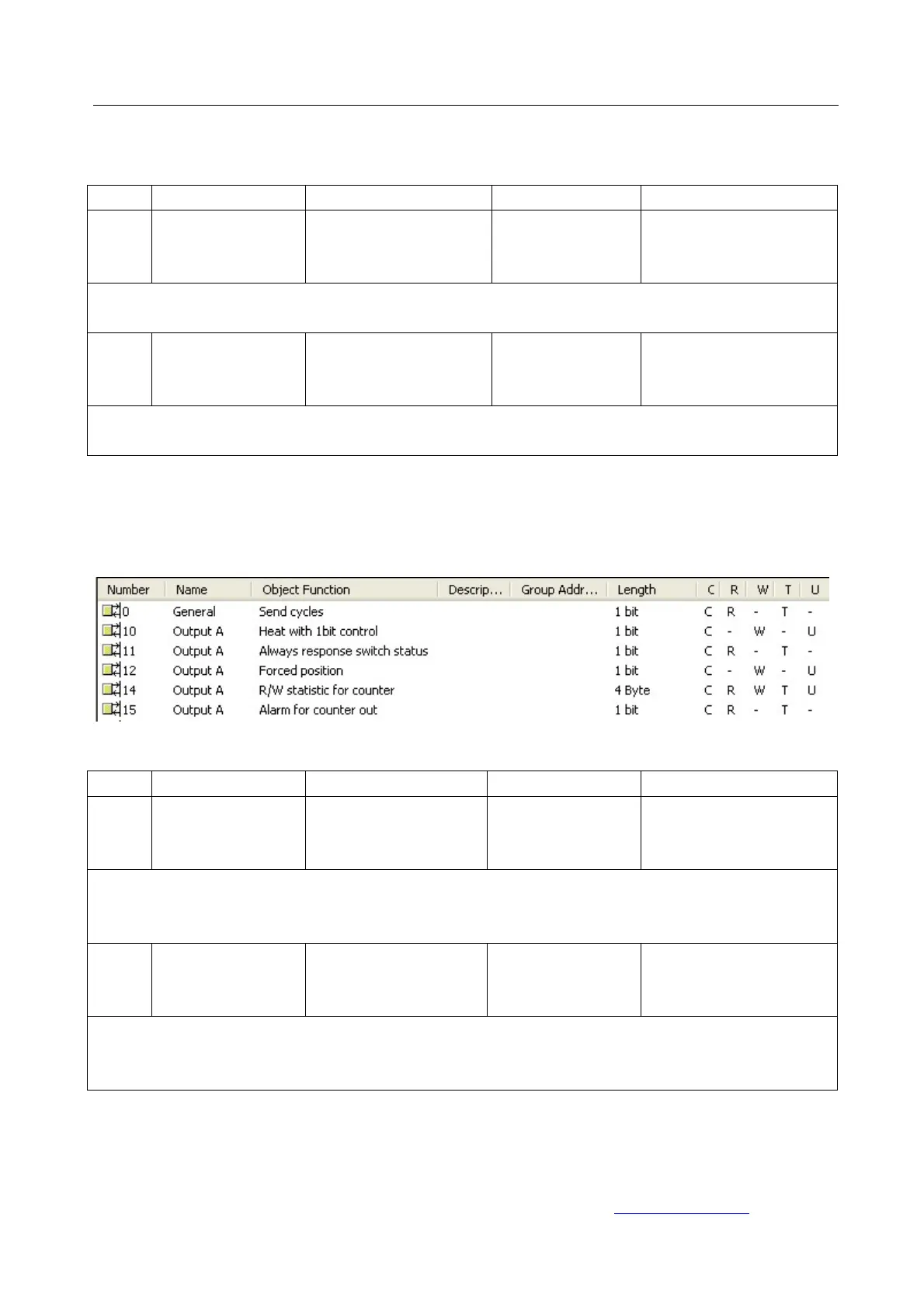

4.2.13 Objects “Logic”
NO. Object name Function Flags Data type
26
Output N Logic connection 1 C W U EIS1
DPT 1.002
1bit
If this function has been actived , this communication object will show and the logic
function is valid. The logic function include : AND,OR,XOR,GATE.
27
Output N Logic connection 2 C W U EIS1
DPT 1.002
1bit
If this function has been actived, this communication object will show and the logic
function is valid. The logic function include : AND,OR,XOR,GATE.
Table 17 Logic
4.2.14 Objects “Heating”
NO. Object name Function Flags Data type
10
Output N Heat with 1 bit
control
C W U EIS1
DPT 1.001
1bit
If work in heating actuator, this communication object default is valid. Start PWM by
receiving telegram “1”,stop PWM by receiving telegram “0” , start running automatic when
power on, and set by ETS
10
Output N Heat with 1 byte
control
C W U EIS14
DPT 5.004
1byte
If select “heat with byte control”, this communication object is valid. Can change valve of
PWM by receive 1byte data. Output ON if receiving value is 255 , output OFF if receiving
value is 0, otherwise output PWM according to the value of receiving telegram from bus.
Table 18 Heating actuator
