HEIDENHAIN PWT 101 - Counts Screen

Encoder diagnostics | Diagnosis
4
4.2.4
Counts screen

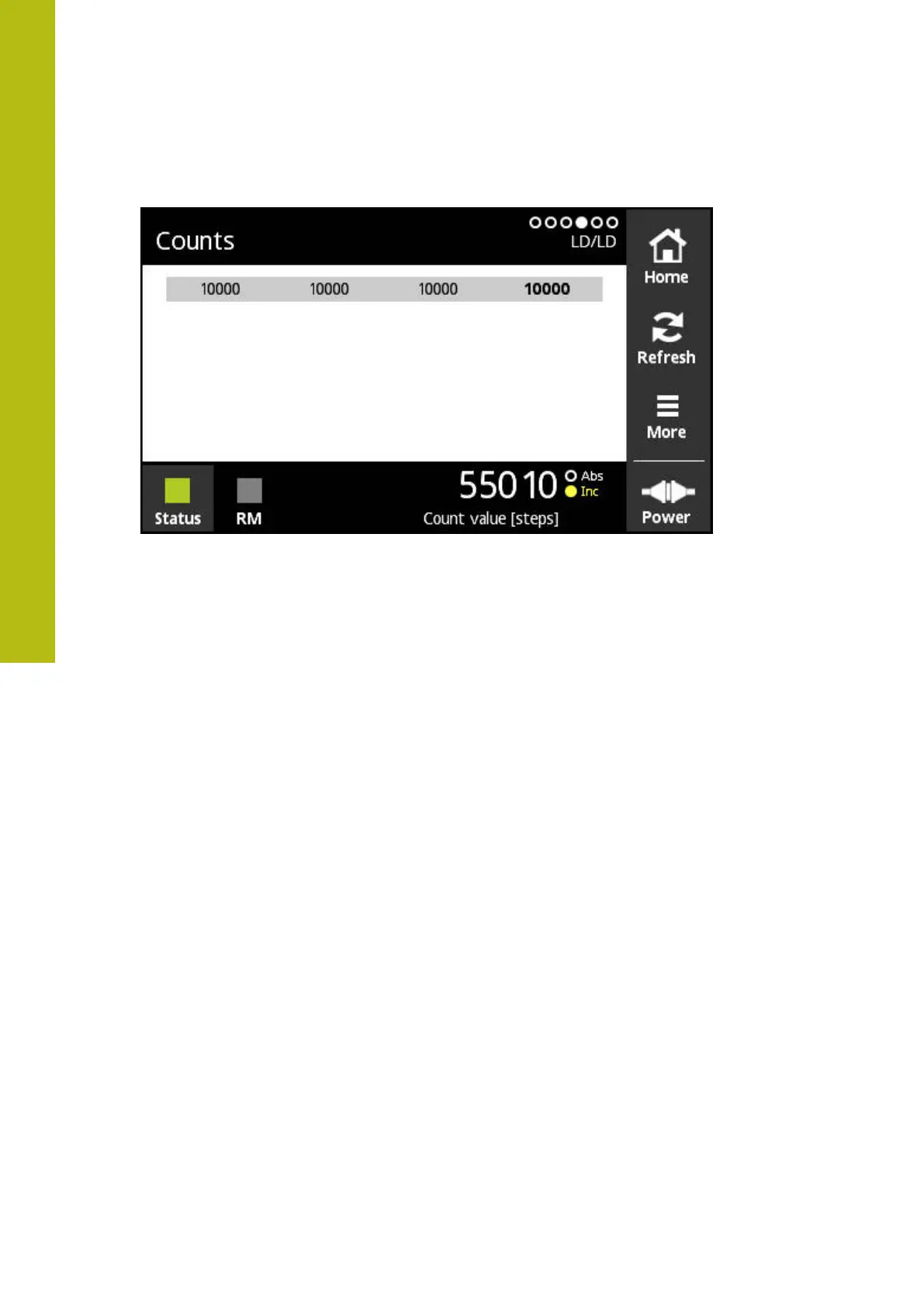

Figure 15: Counts screen
The Counts screen shows the number of signal periods per revolution. The current
value is displayed in bold. The list is adapted depending on the direction of rotation.
