HEIDENHAIN PWT 101 User Manual

Encoder diagnostics | Diagnosis
4
4.2.6

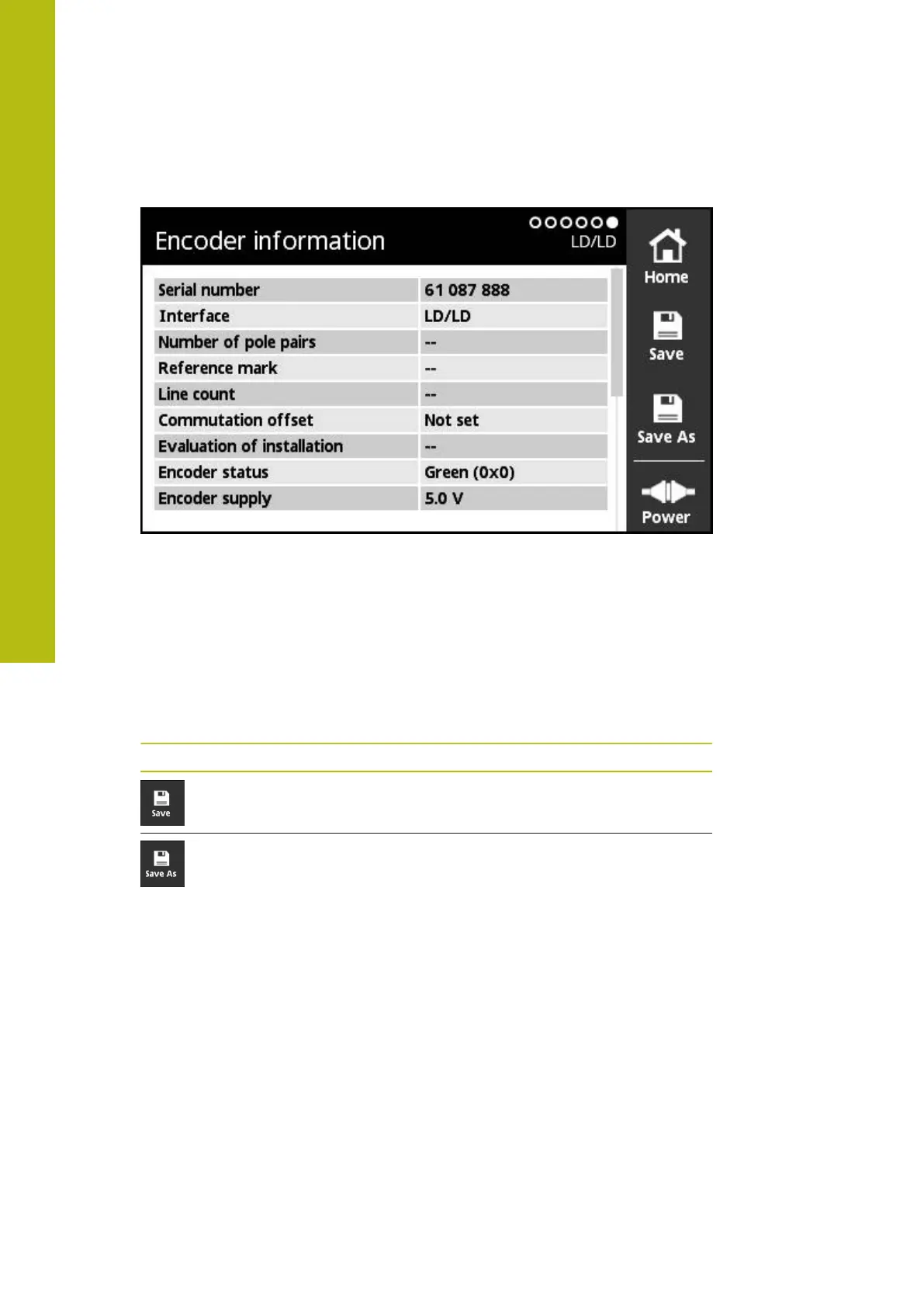

Encoder information screen
Figure 17: Encoder information screen
The Encoder information screen displays the information saved and the results
obtained from checking the connected encoder.
Prerequisite: the encoder supports this function
Saving the Encoder information
You can save the information to a microSD card. Any text editor can be used to
open the file on the PC.
You have the following options for saving the information:
Action Description
The information is saved in a *.JSON file.
The serial number of the encoder is used as the name of the file.
The information is saved in a *.JSON file.
You can assign your own name to the file.
34
HEIDENHAIN | PWT 101 Block Commutation Module | User's Manual | 07/2021
