HEIDENHAIN PWT 101 User Manual

Encoder diagnostics | Diagnosis
4

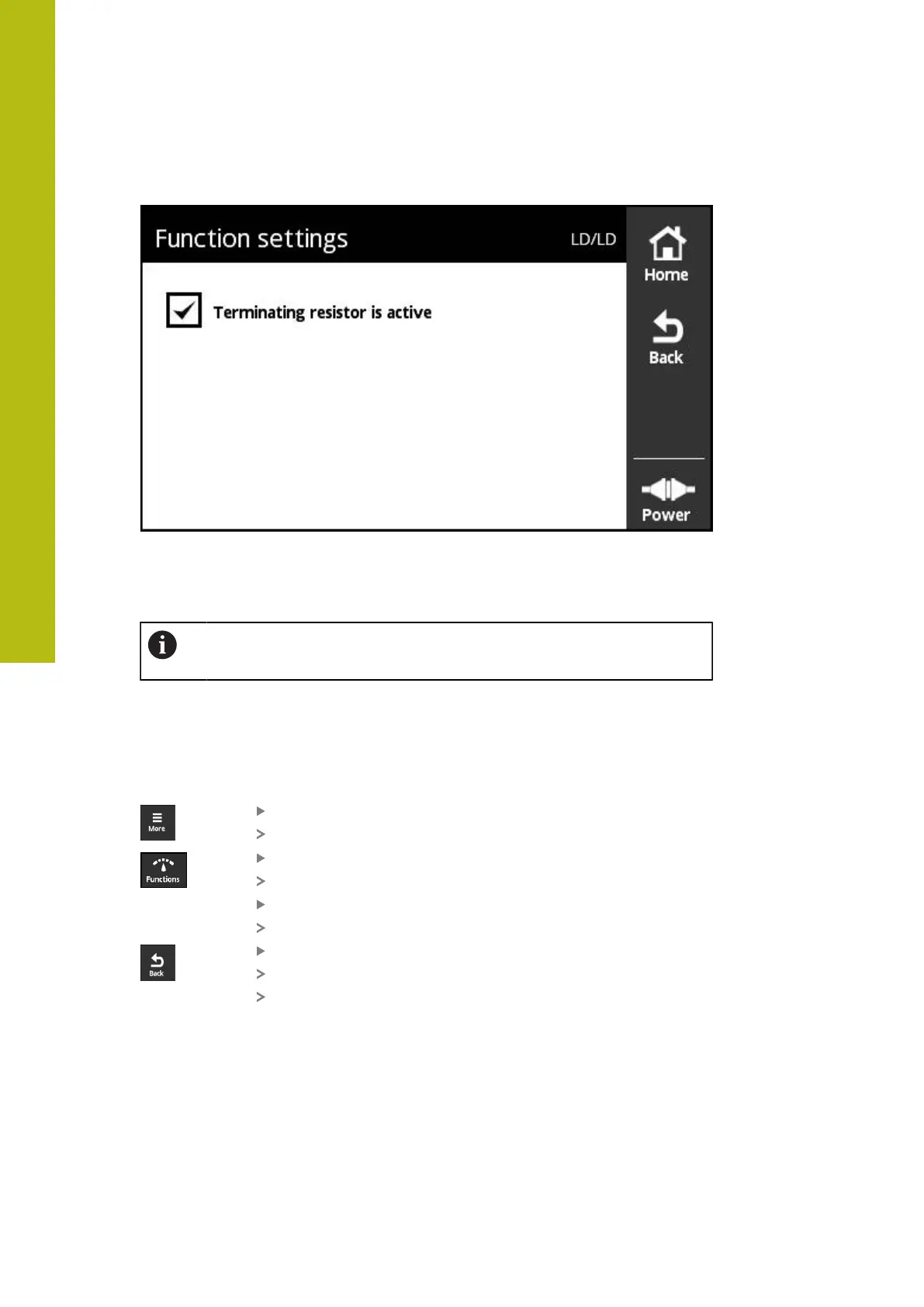

Function settings screen
Figure 18: Function settings screen
The Function settings screen enables you to switch on/off special encoder
functions.
The setting options vary depending on the encoder functions. The
product adapts the displayed setting options correspondingly.
Deactivating the terminating resistor
You can activate or deactivate the terminating resistor on the product. The
terminating resistor is activated in the default setting. The terminating resistor
should be deactivated only in exceptional cases (for example, if two subsequent
electronics are connected to an encoder).
Tap More
The More menu is opened
Tap Functions
The Function settings screen is opened
Tap the Terminating resistor is active option
The terminating resistor is deactivated
Tap Back
The changed settings take effect
The Function settings screen is closed
36
HEIDENHAIN | PWT 101 Block Commutation Module | User's Manual | 07/2021
