6.5 Path Contours — Polar Coordinates

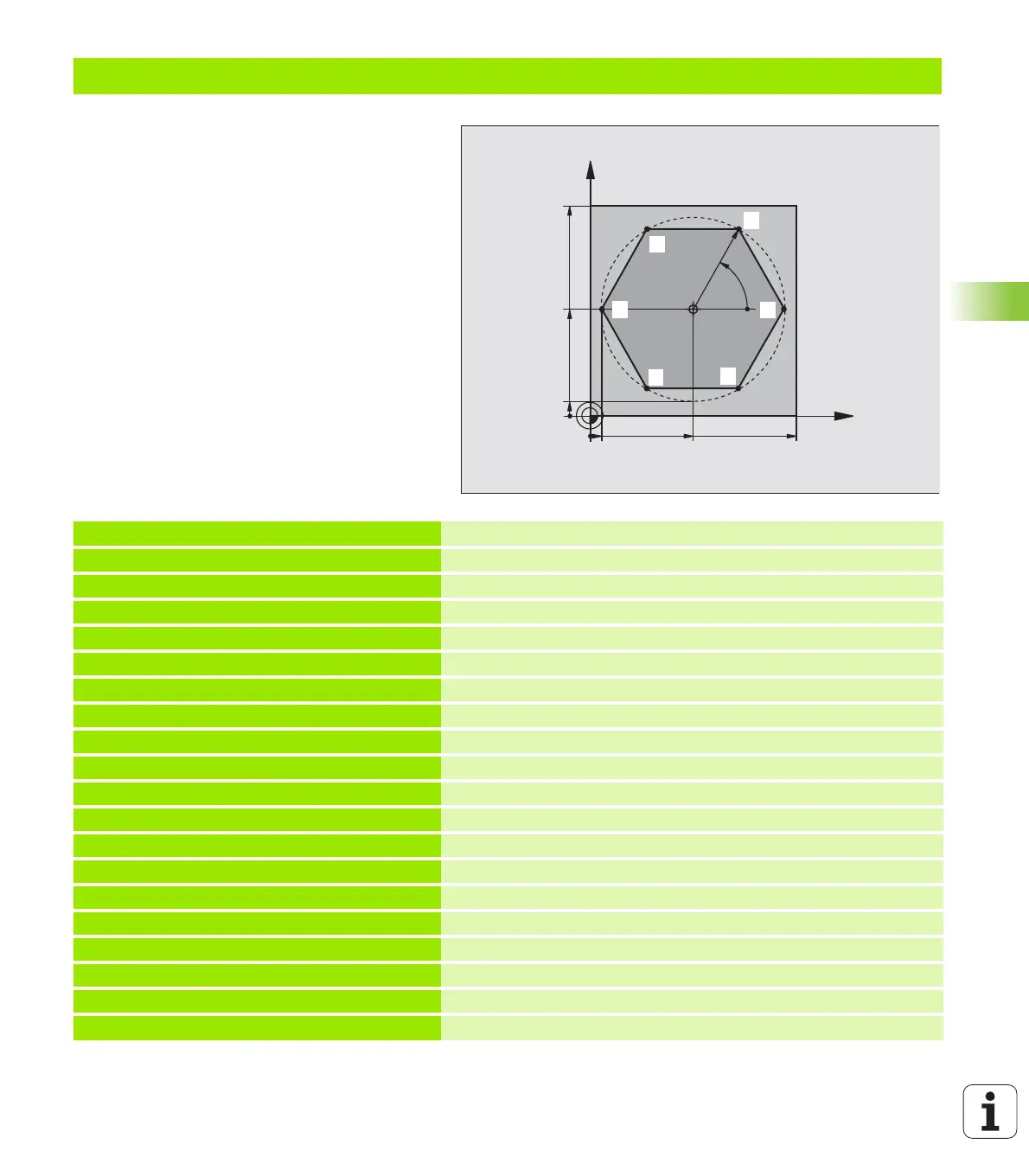

Example: Linear movement with polar coordinates
0 BEGIN PGM LINEARPO MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20 Define the workpiece blank
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL DEF 1 L+0 R+7.5 Define the tool
4 TOOL CALL 1 Z S4000 Tool call
5 CC X+50 Y+50 Define the datum for polar coordinates
6 L Z+250 R0 F MAX Retract the tool
7 LP PR+60 PA+180 R0 F MAX Pre-position the tool
8 L Z-5 R0 F1000 M3 Move to working depth
9 APPR PLCT PR+45 PA+180 R5 RL F250 Approach the contour at point 1 on a circular arc with
tangential connection
10 LP PA+120 Move to point 2
11 LP PA+60 Move to point 3
12 LP PA+0 Move to point 4
13 LP PA-60 Move to point 5
14 LP PA-120 Move to point 6
15 LP PA+180 Move to point 1
16 DEP PLCT PR+60 PA+180 R5 F1000 Depart the contour on a circular arc with tangential connection
17 L Z+250 R0 F MAX M2 Retract in the tool axis, end program
18 END PGM LINEARPO MM
