Henkel LOCTITE EQ RC15 - Connections (Rear Side)

48
2 Description

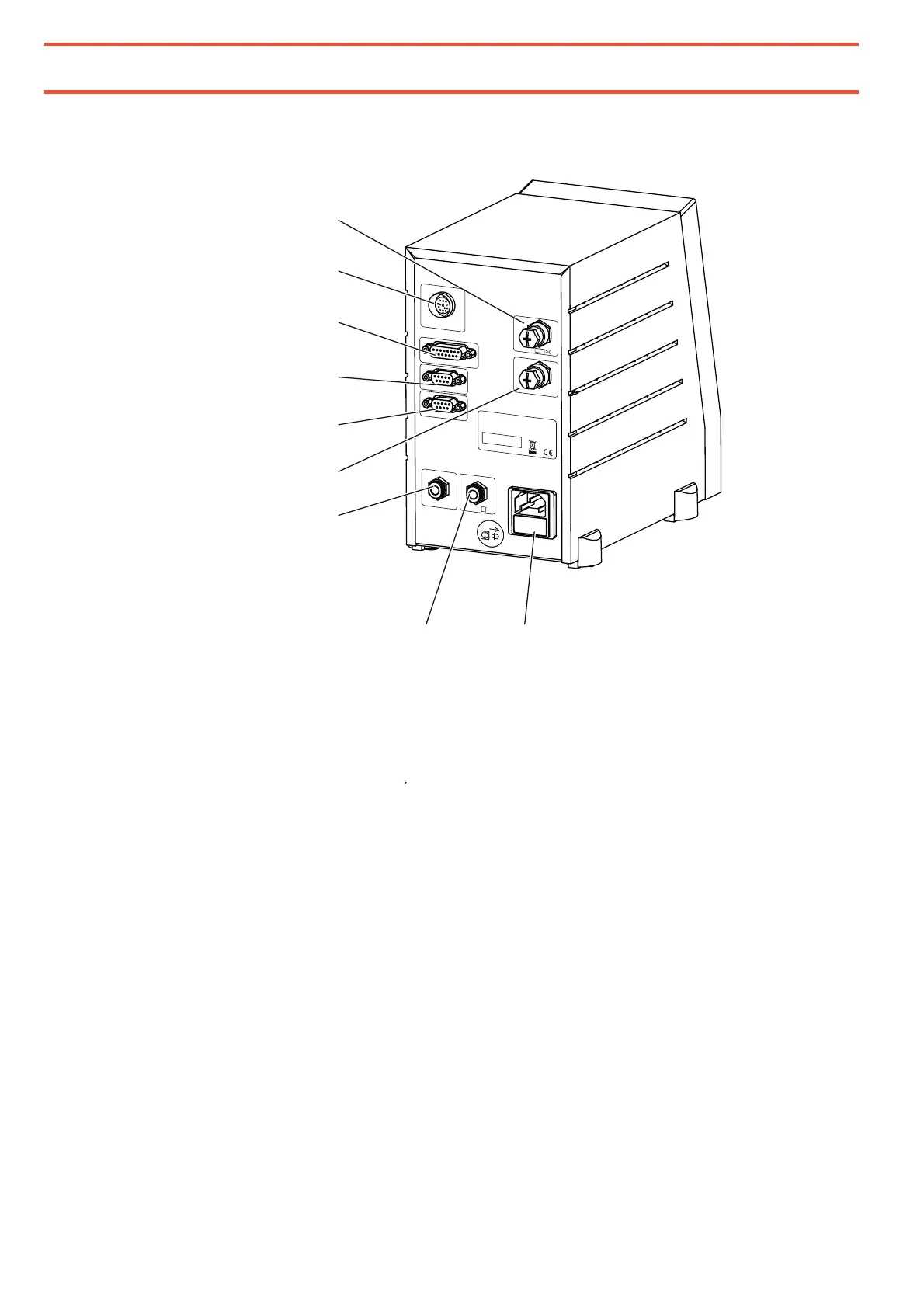

2.6 Connections (Rear Side)
21
Power Connection 100 - 240 VAC, 50/60 Hz with glass tube miniature fuse 2A,
semi time-lag, 5 x 20 mm
22 Pneumatic Connection Reservoir
Regulated air pressure supply (0 - 7 bar, 0 – 100 PSI) to the reservoir, for
air hose OD Ø 6 mm , ID Ø 4 mm.
23 Main air connector 4 - 8 bar (58 PSI - 116 PSI) for air hose OD Ø 6 mm, ID Ø 4 mm
24 Connection XS 18, not in use
25 Connection XS 1 Start
Use to connect foot switch 97201
26 Connection XS 2 Product reservoir
Is used to connect the product reservoir. Only one reservoir can be actuated.
27 Connection XS 10 PLC
Parallel interface for connection of a programmable logic controller.
28 Connector Pump
29 Connection XS 16: Rotor
Is used to connect the rotor.
2122
23
24
25
26
27
28
29
100-240 VAC, 50/60 Hz
Fuse: 2A T (t
ime-lag)
Pump
XS10 PLC
XS2 Reservoir
XS1 Start
XS16
XS18
Henkel AG & Co. KGaA
Standort München
Gutenbergstr. 3
D-85748 Garching
Power Consumption: 100 W
Order No. 1880232
Made in Germany
Pl
ace for
Serial No. Sticker
P out
P in 4-6 bar
+ 0.05
–
0.10
