Henkel LOCTITE EQ RC15 - Interface XS2 Reservoir

60
8 Appendix
8.2 Interface XS2 Reservoir
Only the tanks and product supply devices provided by LOCTITE can be operated at this
interface!
Pin no.: Function Addition
1 "Refill" signal input Not galvanically isolated
2 "Empty" signal input
3
4
5 Internal ground output
6 Tank valve output
7
8 Tank detection input
9 Internal output +24V
Pins 5 and 9 are used to supply the tank electronics.
The internal power supply is rated for a maximum of 100 mA. Under no circumstances may a
power supply be connected to these outputs!

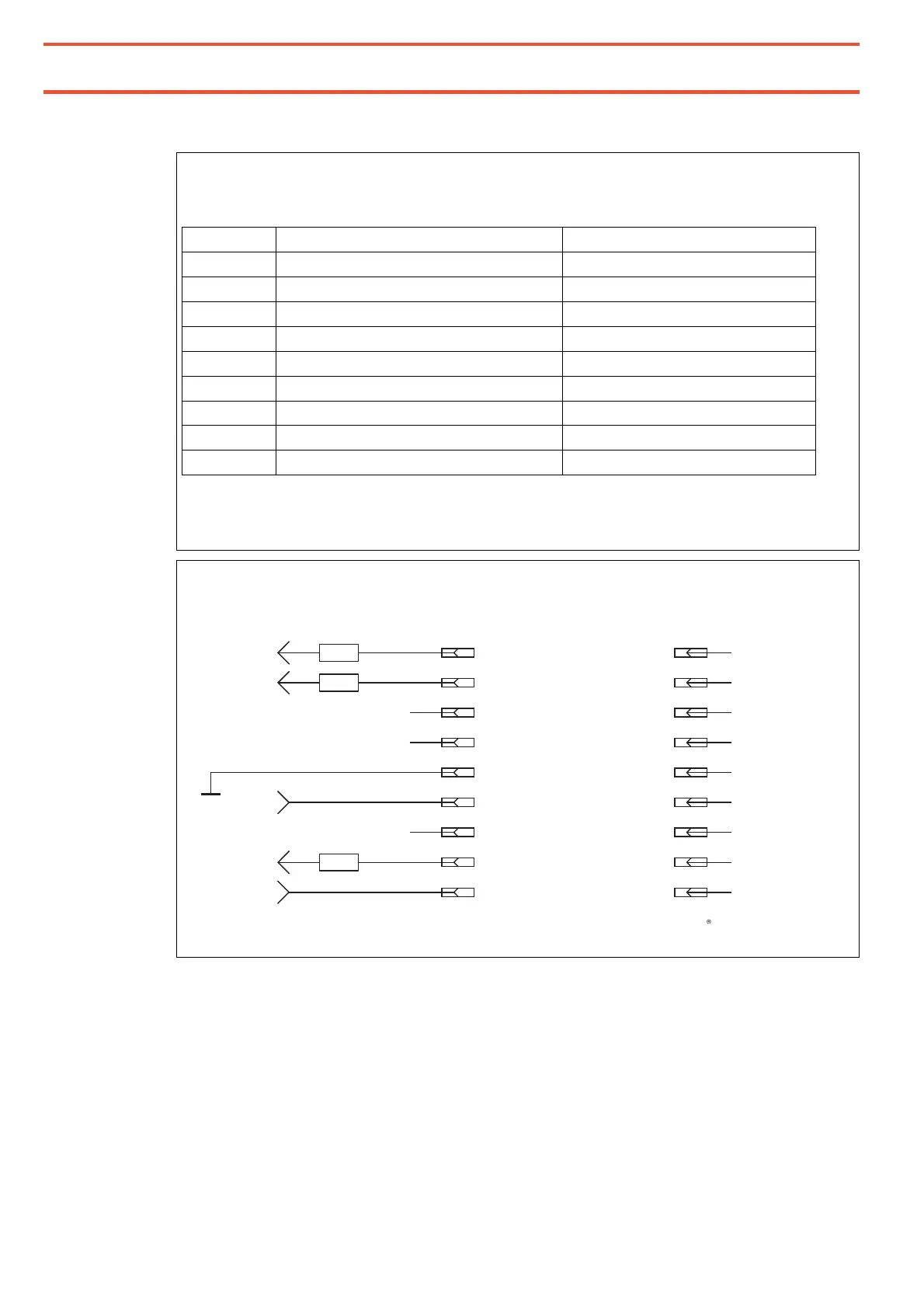

RC15 DC Drive Controller
Reservoir 97106
Reservoir 97108
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Reservoir refill
Reservoir empty
0VDC
Reservoir
solenoid valve
Reservoir
identification signal
+24VDC output
Ground
+24VDC,
50 mA
Connect original Loctite product supply only!
