19
• Always replace both the pads as a set.
•

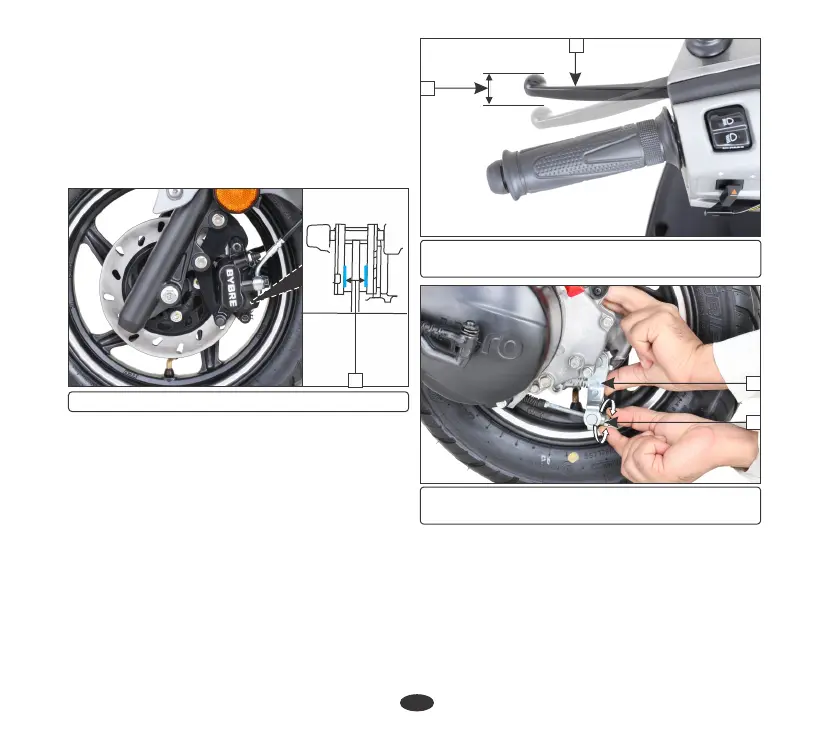

Check the wear indicator grooves (1) on
each pad.
• Check the brake pads for wear by examining
the wear limit grooves on each pad.
Inspection
• Replace the pads if worn out to the bottom
of the groove.
(1) Wear indicator groove
1
• Visit your Authorised Hero MotoCorp
workshop for the brake pad replacement.
(c) Rear brake
•
Check the free play of integrated/rear
brake lever (1).
FREE PLAY: 10-20 mm
•
If the free play (2) is more than 20 mm
turn the adjuster nut (3) in the brake arm
(4) to obtain desired free play.
Make sure the cut-out on the adjusting nut
(5) is seated on the brake joint pin (6) after
making final free play adjustment.
(3) Adjuster nut (4) Brake arm
(i) Decrease free play (ii) Increase free play
(ii)
(i)
4
3
(1) Integrated/Rear brake lever
(2) Free play:10-20 mm
1
2
If proper adjustment cannot be obtained by
this method, visit your Authorised Hero
MotoCorp workshop.
