(1) Free play: 2-6 mm
1
(2) Boot (3) Lock nut
(4) Adjuster
(A) Decrease free play (B) Increase free play
A
B
4

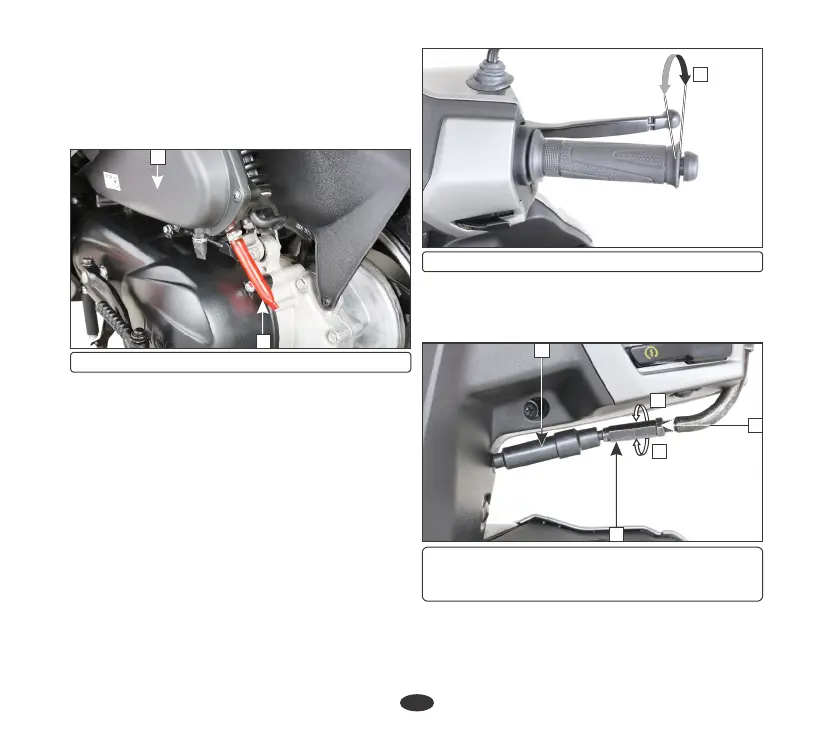

(1) Drain tube (2) Air cleaner assembly
1
2
from the fully open to the fully closed position.
Cable inspection
Check at full left and full right steering
positions. Inspect the condition of the throttle
cable from the throttle grip down to the
throttle body. If the cable is kinked, chafed or
improperly routed, it should be replaced or
rerouted. Standard throttle grip free play (1)
is approximately 2-6 mm of grip rotation.
THROTTLE OPERATION
Check for smooth rotation of the throttle grip
Free lay djustmentp a
Slide the (2), loosen the lock nut (3) and boot
turn the adjuster (4).
Service more frequently when riding in rain, at
full throttle or after the vehicle is washed or
overturned. Service if the deposit level can be
seen in the transparent section of the drain
tube.
3
2
