HERO MAESTRO EDGE PROGRAMMED FI - Body Cover

34

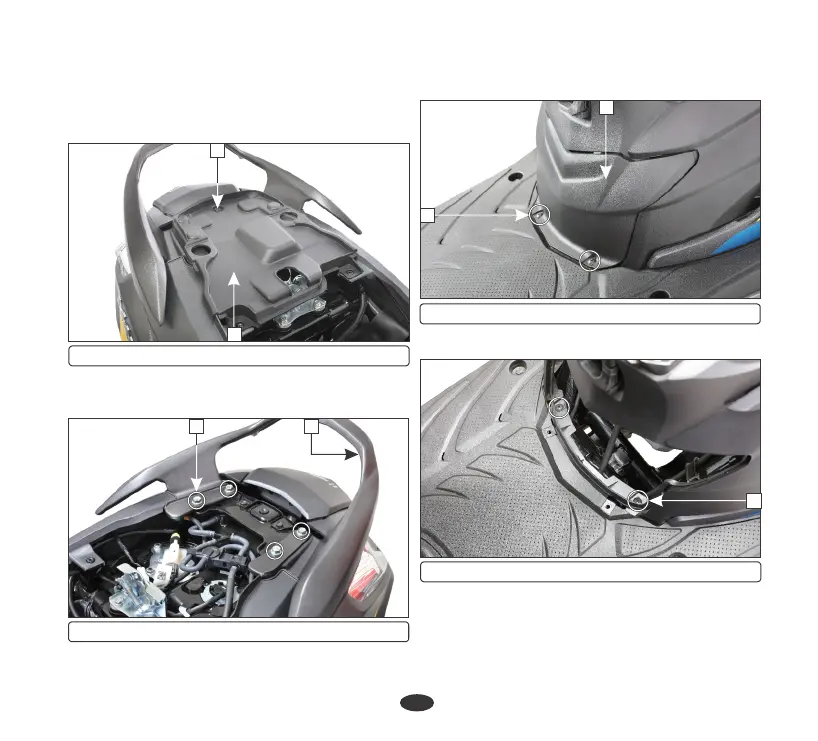

(b) Body cover
• Remove the fuel tray sub assembly bolt (1).
• Remove the fuel tray sub assembly (2).
• Remove the center compartment (page 28).
Removal
2
(1) Bolt (2) Fuel tray sub assembly
1
•
Remove the rear grip bolts (3) and rear grip
(4).
(3) Bolts (4) Rear grip
3
•
Remove the center cover (6).
•
Remove the screws (5) from the center
cover.
•
Remove the screws (7).
(5) Screws (6) Center cover
4
(7) Screws
6
5
7
