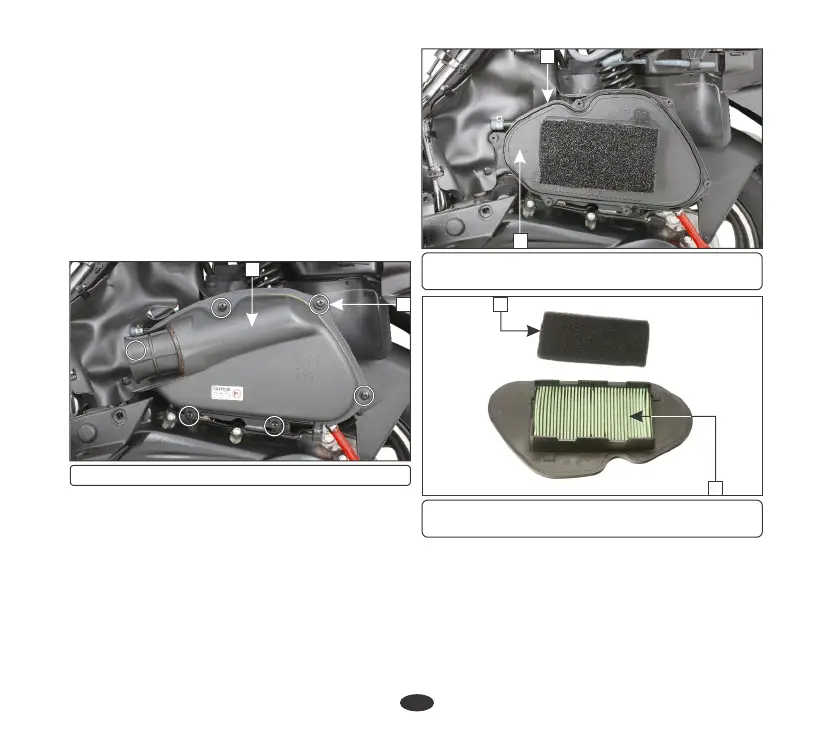

(1) Air cleaner cover (2) Screws
Refer to the safety precautions . (page 52)
• (page 34)Remove the body cover .
Removal
• Remove the air cleaner cover (1) by
removing the screws (2).
AIR CLEANER ELEMENT
The air cleaner element is of pre foam and
viscous type replaced , it should be at regular
intervals . (pages 53) Early replacement may
be required when riding in unusually wet or
dusty areas.
(3) Air cleaner element holder component
(4) Air cleaner sub assembly case
1
2
•
Remove the air cleaner element holder
component (3) from air cleaner sub
assembly case (4).
•
Separate the pre foam element (5) from
the air cleaner assembly.
(5) Pre foam element
(6) Viscous air cleaner element
5
•
. R Replace the element, if found choked efer
maintenance schedule (page 53).
Viscous air cleaner element inspection
•
Inspect the viscous air cleaner element (6)
for any dust or dirt accumulation.
3
6
4
To Next Page
