(16) Body cover
Installation
Installation is in the reverse order of removal.
16

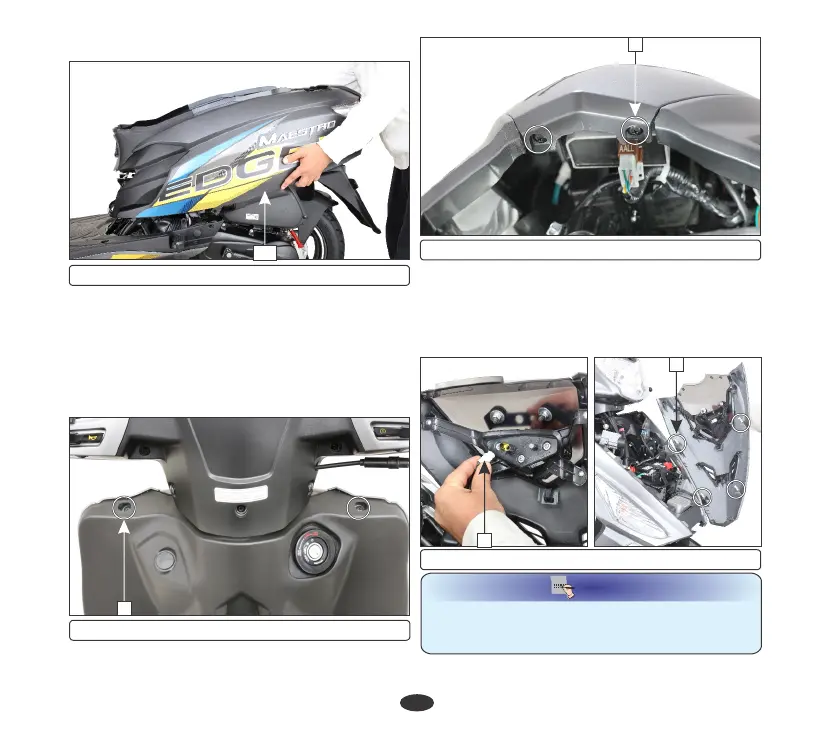

(c) Front center cover
•
Remove the two screws (1) on the inner
cover side.
Removal
(1) Screws
1
•
Remove the two screws (2) near the front
fender.
(2) Screws
•
Disconnect the position lamp connector
(3) and release the front center cover lugs
(4) from the mounting clips. Remove the
front center cover by pulling it axially
downwards towards front.
2
•
Remove the complete body cover (16).
While removing the front centre cover, make
sure to open the cover cautiously to avoid
position lamp wire breakage.
NOTE
(3) Position lamp connector (4) Lugs
3
4
