HERO MAESTRO EDGE PROGRAMMED FI - Body Parts Removal Procedures; Center Compartment and Body Cover Removal

33
(2) Right footrest
2
(1) Bolts
Removal
•
Open the seat (page 26).
•

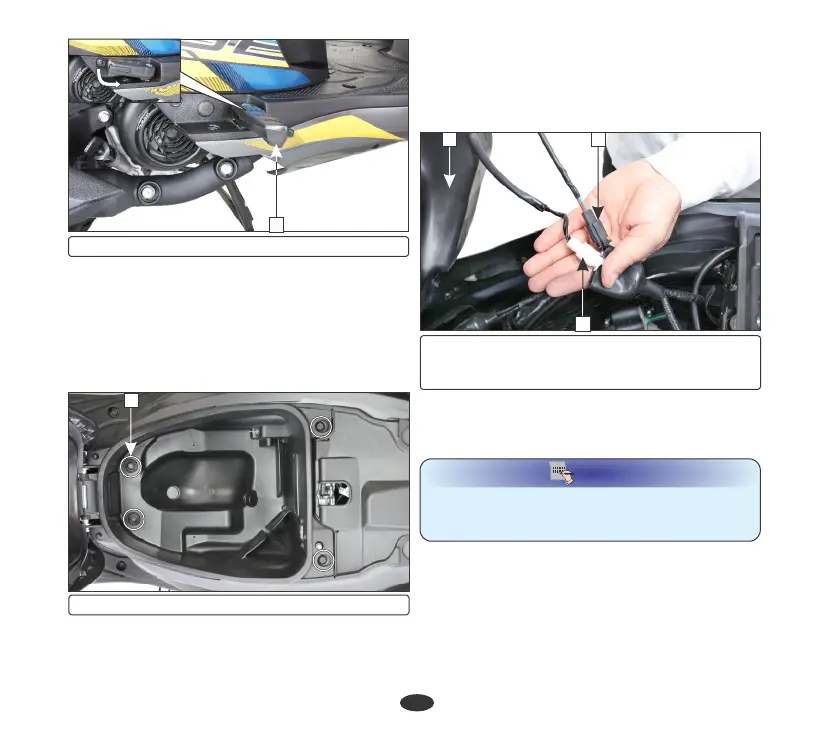

Remove the bolts (1) from the center
compartment.
BODY PARTS REMOVAL
(a) Center compartment
(2) Boot lamp connector
(3) USB charger connector
(4) Center compartment
4 3
2
Park the vehicle on its main stand when
servicing the vehicle with the center
compartment removed.
NOTE
•
Slightly lift up the center compartment
from the rear and disconnect the boot lamp
connector (2) and USB charger connector
(3).
•
Remove the center compartment (4).
Installation
Installation can be done in the reverse order of
removal.
1
