HERO MAESTRO EDGE PROGRAMMED FI - Handlebar Controls; Left Handlebar Switches Operation; Right Handlebar Controls and Steering Lock

26
IMPORTANT: To switch “OFF” the turn
signal after completing the turn, gently push
inside as directed on the switch.

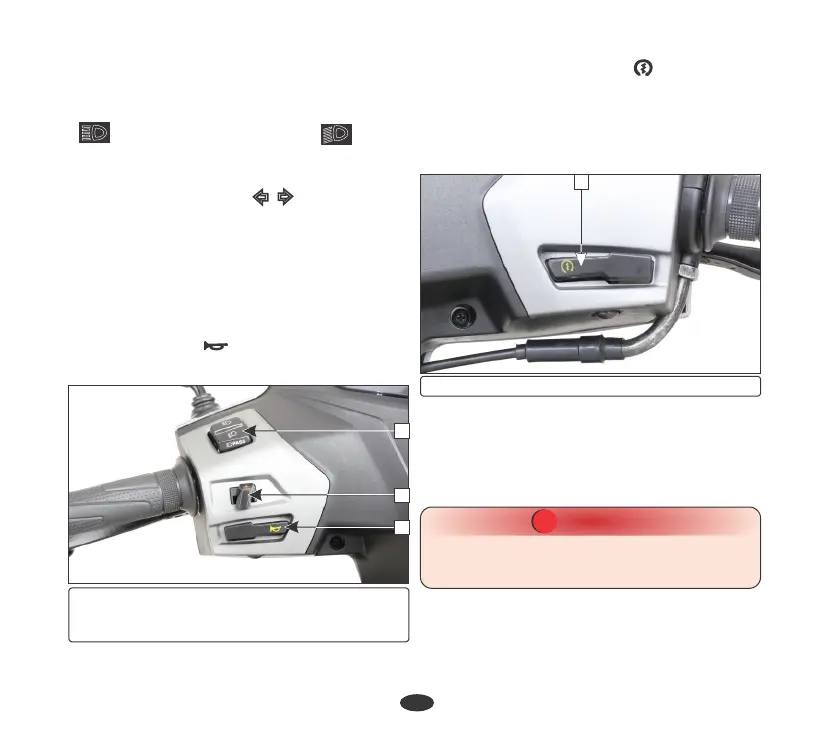

Left handlebar controls
“ ” downwards for low beam “ ”.
Press the switch to “PASS” position to
operate the passing lamp.
Press the switch upwards for high beam
2. Turn signal switch ( )
1. Dimmer switch/Passing switch
Shift the turn signal switch sideways for
right/left indications and leave it to come back
to its normal position on its own.
3. Horn switch ( )
Press the switch to operate the horn.
HANDLEBAR SWITCHES CONTROLS
(1) Dimmer switch/Passing switch
(2) Turn signal switch
(3) Horn switch
Right handlebar controls
1. Electric starter switch ( )
The electric starter switch (1) is next to the
throttle grip.
When the starter switch is pressed, the starter
motor cranks the engine with the front or
integrated brake lever applied.
(1) Electric starter switch
FEATURES
(a) Steering lock
To lock the steering, turn the handlebar all the
way to the left, turn the key (1) to "LOCK"
position while pushing in and remove the key.
CAUTION
!!
Do not try to turn the key to "LOCK" position
while riding the vehicle, which may lead to loss
of vehicle control.
