(1) Ignition switch
(A) Push in (B) Turn to lock
A
B
27

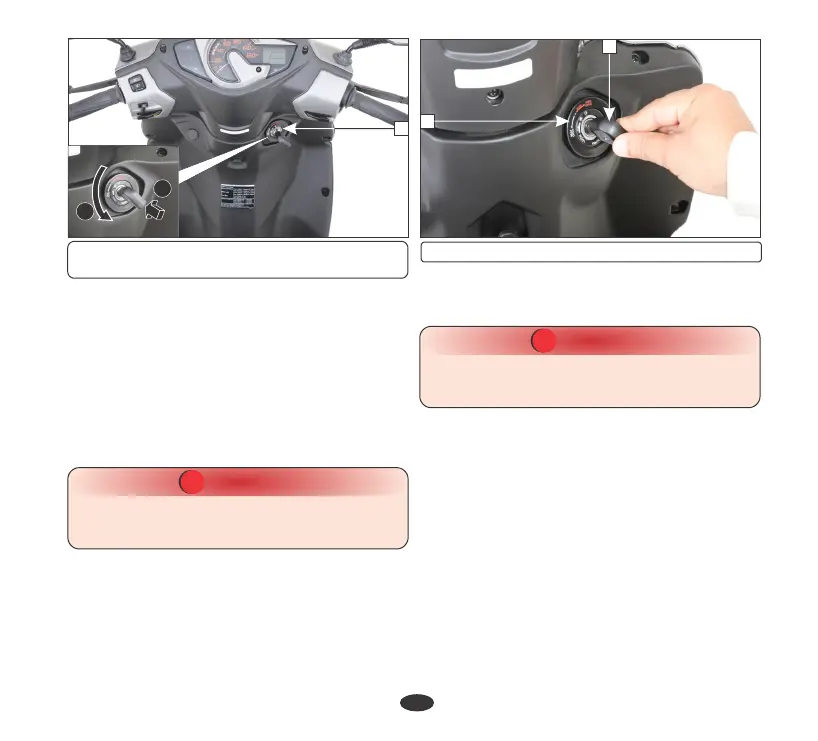

(b) Fuel tank lid lock
The fuel tank lid lock is provided along with
ignition switch (1).
To open the lid, insert the key (2) while
pushing in and turn it clockwise to “FUEL
OPEN” position. The lid will release from its
latch.
To lock the lid push down gently until it locks
and hear a click sound to ensure the fuel tank
lid is secure before riding.
CAUTION
!!
Gently close the lid by hand. Sudden dropping
of the lid may result in breaking the lid lock and
malfunction of the lock.
To lock the seat, close and push down on the
rear of the seat until locks.
Make sure the seat is secure before riding.
CAUTION
!!
Gently close the seat by hand. Sudden
dropping of the seat may result in breaking the
seat lock and malfunction of the lock.
To open the seat, insert the key (2) and turn
it counterclockwise to “SEAT OPEN”
position. The seat will release from its catch.
(c) Seat lock
The seat lock is provided along with the
ignition switch (1).
•
Remove the helmet from the holder and
close the seat.
•
Open the seat.
•
Attach/Hook the helmet strap or ring to the
helmet holder and close the seat.
(d) Helmet holder
Two helmet holders (1) are located under the
seat.
•
To release the helmet from the holder.
•
Open the seat.
To access the holder or to secure a helmet (2)
to the holder.
(1) Ignition switch (2) Ignition key
1
2
