• Used engine oil may cause skin disease if
repeatedly left in contact with the skin for
prolonged periods. Although this is unlikely
unless you handle used oil on a daily basis,
it is still advisable to thoroughly wash your
hands with soap and water as soon as
possible after handling used oil.
• Please dispose used engine oil in a manner
that is compatible with the environment. We
suggest you take it in a sealed container to
your local recycling center or service station
for reclamation. Do not throw it in the trash
or pour it on the ground or down a drain.
•
Start the engine and let it idle for 3-5
minutes.
FINAL DRIVE OIL REPLACEMENT
•
Remove the oil level check bolt (1) with
sealing washer (2).
•
Stop the engine and wait for 2-3 minutes.
•
After the oil is completely drained, install the
oil drain bolt with a new sealing washer.
•
on a level Park the vehicle on its main stand
surface.
•
Remove the drain bolt (3) with sealing
washer (4), slowly turn the rear wheel and
drain the oil.
The final drive oil should be replaced as per
the maintenance schedule. Replacement
requires mechanical skill. It is suggested to get
it replaced by Authorised Hero MotoCorp
workshop.
•
Make sure that no oil gets on the tyre or
wheel.
•
While refilling the oil make sure that no
foreign material enters the final drive
transmission.

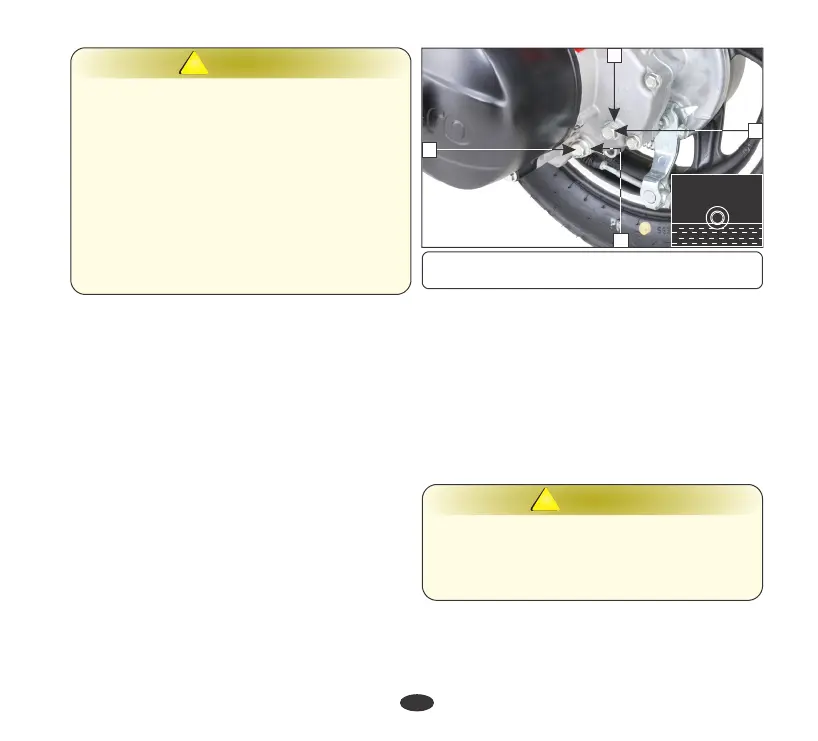

(1) Check bolt (2) Sealing washer
(3) Drain bolt (4) Sealing washer
2
•
Install the oil level check bolt with a new
sealing washer and tighten it.
GRADE : SAE 10W 30 SL Grade
(JASO MB)
At draining : 0.10 Litre
• Fill the transmission case with recommended
oil through the check bolt hole up to the
bottom edge of the bolt hole.
At transmission disassembly: 0.12 Litre
1
3
4
