67
•
Install a new bulb in the reverse order of
removal.
•
Install the headlamp assembly (page 41).

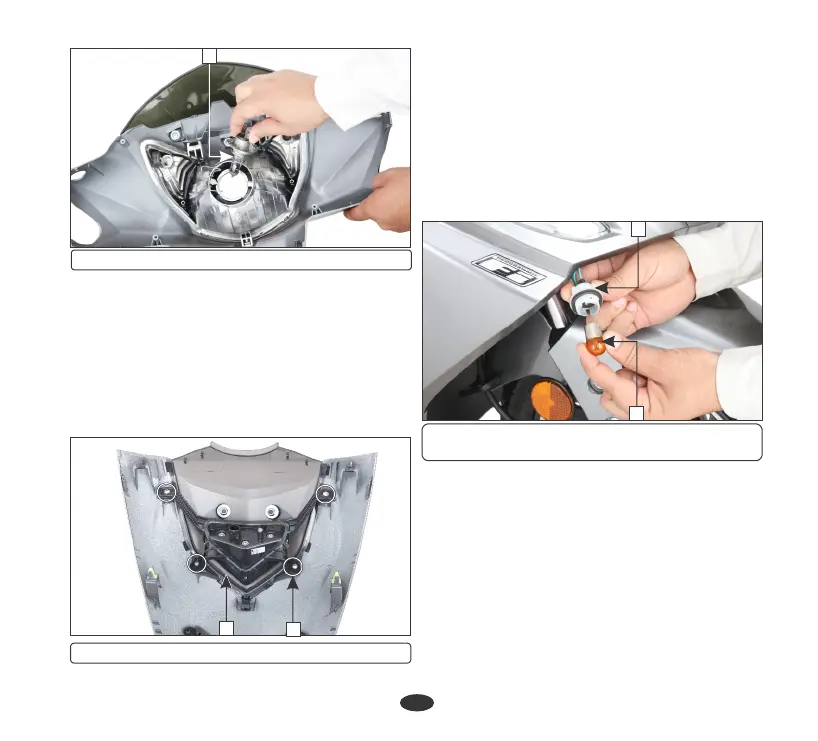

(4) Headlamp bulb
(b) Position lamp assembly
•
Remove the screws (1) and remove the
position lamp assembly (2) from front center
cover.
•
Remove the front center cover (page 37).
(1) Screws (2) Position lamp assembly
2
1
•
Install a new position lamp assembly in the
reverse order of removal.
•
Remove the bulb (2) by turning it to
counterclockwise direction.
(c) Front turn signal bulb
•
Insert hand from body cover front side,
above front fender area and remove turn
signal bulb holder (1) by turning counter
clockwise.
(1) Front turn signal lamp holder
(2) Front turn signal lamp bulb
2
1
•
Install a new bulb in the reverse order of
removal.
(d) Tail/Stop lamp LED unit
•
Remove the body cover (page 34).
•
Remove the centre compartment (page 33).
•
Remove the fuel drain tube (1).
•
Remove the fuel tank lid lock cable from the
guide (2).
•
Remove the tail/stop lamp unit from
the body cover by removing the screws (3).
4
