HERO PLEASURE - Page 20

17
1
2
CUT-OUT NOT SEATED
(1) Adjusting nut (2) Brake joint pin
1
2
CUT-OUT SEATED

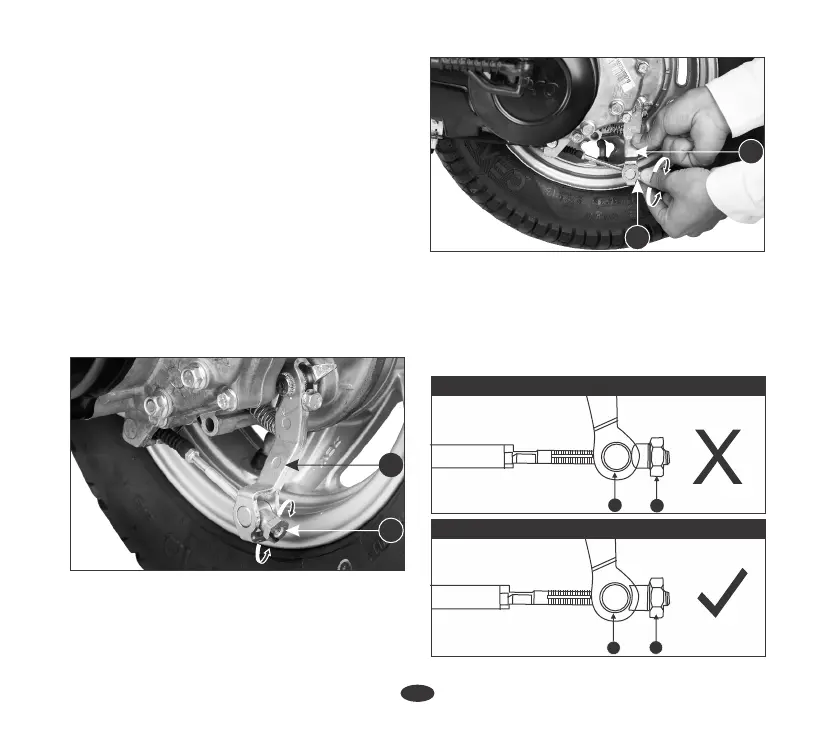

Make sure the cut-out on the adjusting nut
(1) is seated on the brake joint pin (2) after
making final freeplay adjustment.
(8) Adjuster nut (9) Brake arm
(i) Decrease free play (ii) Increase free play
9
FREE PLAY : 10-20 mm
1. Make free play adjustment by turning
the adjuster nut (8) in the brake arm
(9).
2. Check the free play of integrated brake
lever.
3. If the free play is more than 20 mm
further turn the adjuster nut to obtain
desired free play.
Rear brake
(8) Adjuster nut (9) Brake arm
(i) Decrease free play (ii) Increase free play
(ii)
(i)
8
9
(ii)
(i)
8
Cast Wheel Version
Sheet Metal Wheel Version
