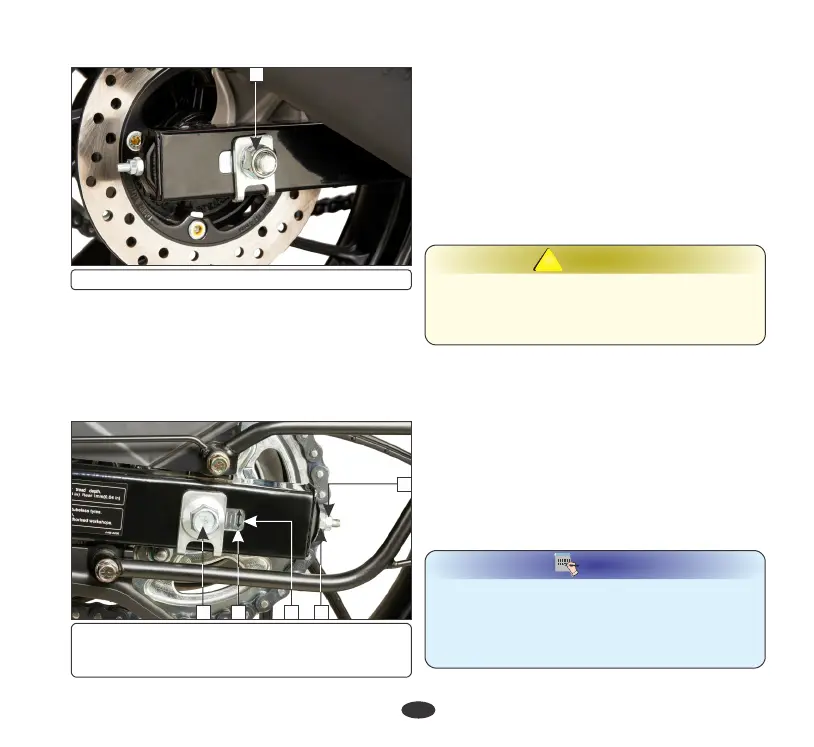

(2) Axle (3) Drive chain lock nut
(4) Drive chain adjusting nut (5) Index mark
(6) Rear edge of adjusting slot
WARNING
!!
If a torque wrench is not used for installation,
see your Authorised Hero MotoCorp workshop
as soon as possible to check for proper
assembly.
(1) Rear axle nut
• Loosen the drive chain lock nut (3) from
both side.
• Turn the adjusting nut (4) in an equal number
of turns until the correct drive chain slack is
obtained. Turn the adjusting nut clockwise to
decrease the slack or anticlockwise to increase
the slack of the chain.
3
4652
1
• Tighten the rear axle nut.
• Align the chain adjuster index mark (5) with
the rear edge (6) of the adjusting slots on
both sides of the swingarm equally.
Torque: 6.8 kgf-m
• Check the drive chain slack again.
• If after adjustment of drive chain slack, axle
(2) touches to the rear edge of adjustment
slot (6). Chain kit has to be replaced.
Lubricate every 00 km or sooner if the 10
chain appears dry.
• park the vehicle on its Turn the engine off,
main stand and shift the transmission into
neutral. Open side stand to facilitate
cleaning.
• Spray a commercially available chain
cleaner for cleaning the drive chain over its
entire length.
Cleaning and Lubrication
Ensure that the chain cleaner and lubricant
used is the one recommended for use on an
O-ring chain, otherwise the O-rings may
deteriorate, fail and lose their sealing
properties.
NOTE
