Transport and storage
Storage conditions
■ When transporting using a transport aid (e.g., a pallet truck), the trans-
port aid must be able to carry at least 1.6 times the transport weight of
the device.
■ Secure the device to prevent it tipping over and falling down during
transport.
■ Never transport the device sideways or upside down.
■
The device must be stored in the original packaging.
■ Only store the device in dry rooms.
■ The storage temperature must be between -20°Cand+60°C.
■
Humidity must not be condensing. Humidity must be between 10%and
80%.
4.2
Fastening the transport lock
Personnel:
■
Trained user
The lid is closed.
The mains cable is disconnected from the device.
1
2 3
1 2
3
2
3
2

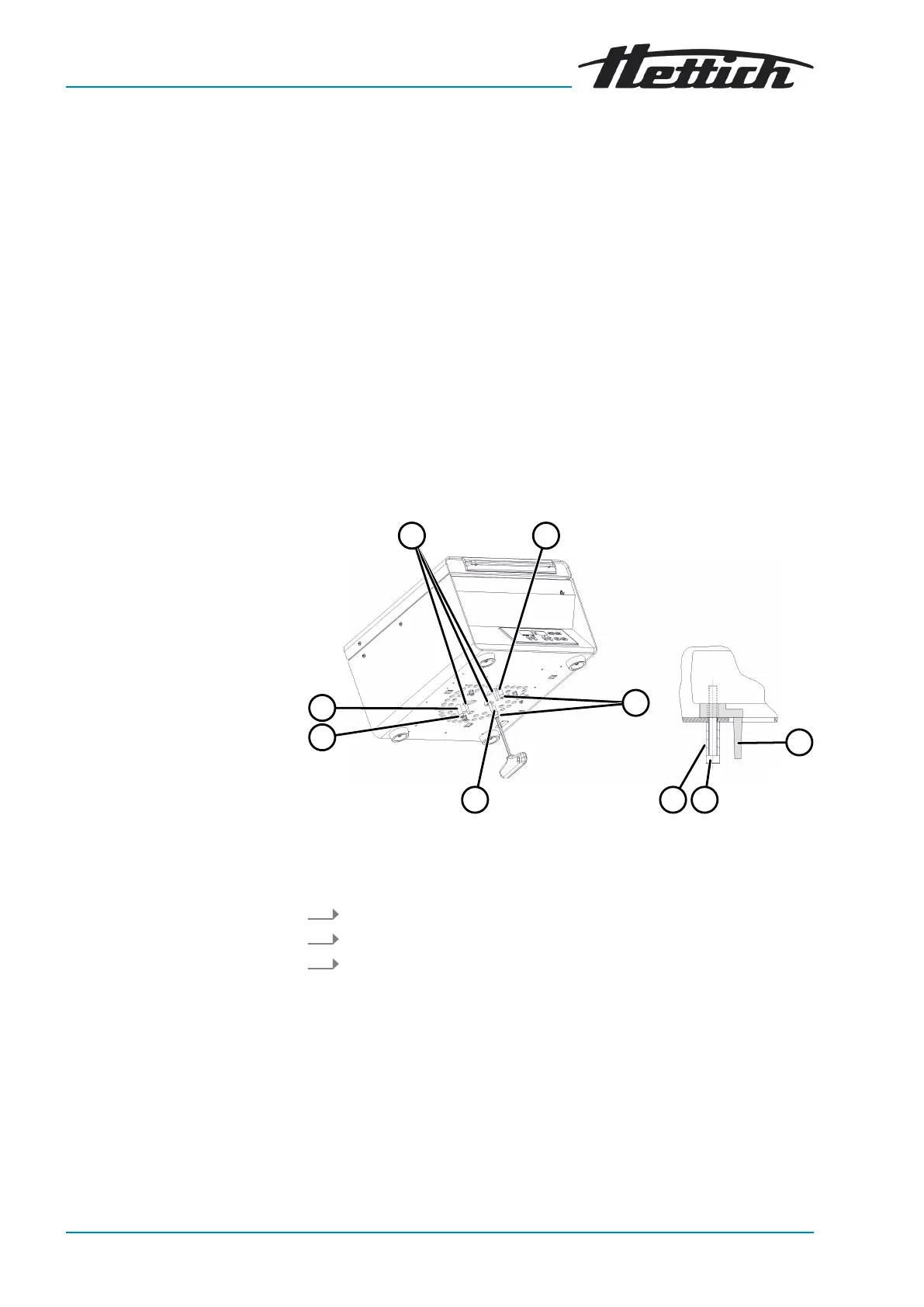

Fig. 13: Transport lock
1 Transport lock
2 Spacer sleeves
3 Screws
1.
Tilt the device on the back of the device.
2. Insert 3 transport locks (
1
).
3. Screw in 3 screws (
3
) with spacer sleeves (
2
).
