User manual for single-phase meter
53
21.2 Preparation before installation
The meter should be installed in ventilated and dry place to ensure the meter’s safety and
reliability. In dirty or risky area, the meter should be installed in a protection box.
Meter should be fixed on a firm, fire-resistant and stable support.
Before installation, please check if the meter has been damaged during the
transportation(damage of meter cover, hanger, seal, and LCD display, etc)
As the internal part of the electrical meter is composed by the delicate electronic components,
the meter should be carefully protected during the installation in order to avoid any damage.
Make sure that the power is cut off before the meter installation,
otherwise it will cause a threat to life. The fuse should be disconnected
and put it in a safe place to avoid the accidental power-on.
21.3 Installation procedure
1. Select the proper position according to the meter dimensions, and indicate fixing points of the
meter on the installation panel.
2. Drill down holes on previously marked positions. (make sure that there’s no cable behind
before punching, avoid ruining the cable and threatening personal safety)

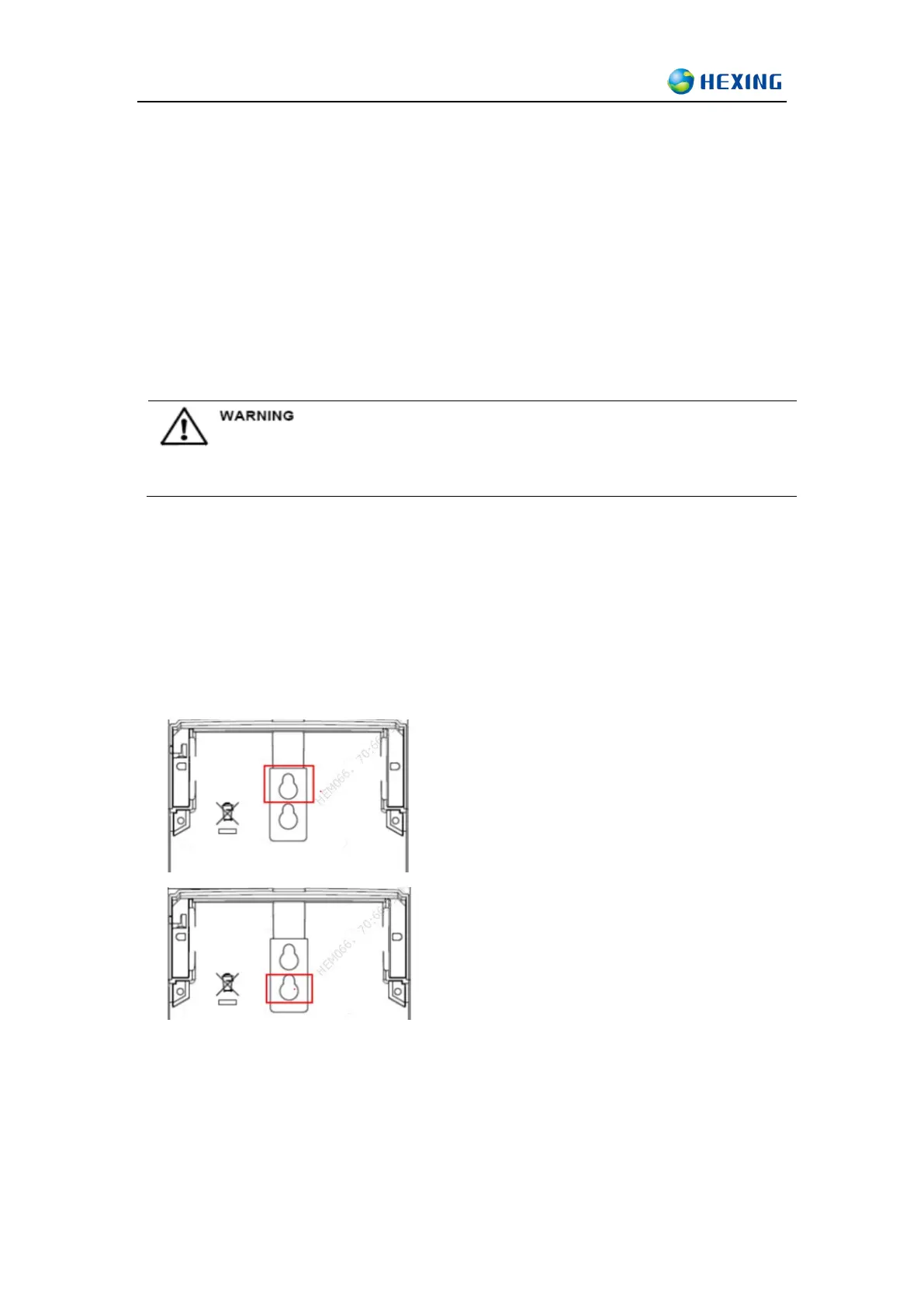

3. Open the meter terminal cover, and adjust the height of hanger.
4. Using the vertical installation method, the meter hangs on the hanger screw, and fixed on the
bottom by two screws. Need make sure that the 3 screws are completely banned, and the
meter is installed firmly, without shaking.
