Using for the rst time
Page 23
heyer_LUVAR_UserManual_EN-3_CRev-1

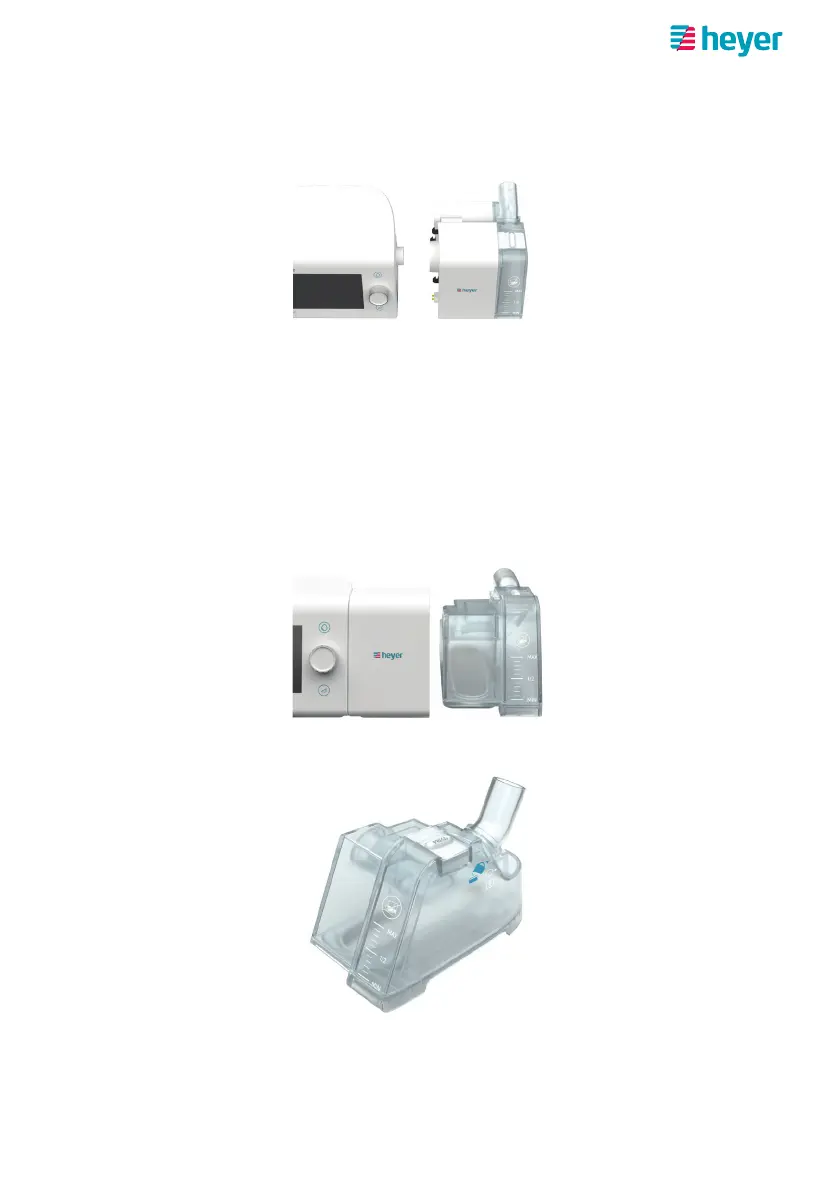

2. Bring the humidifier towards the respiratory therapy device from the right
and line up the device and humidifier housings side by side.
3. Press the humidifier gently against the device until it clicks into place.
4. Fill the water tank as described in section “Filling the water tank”.
Filling the water tank
The water tank has a capacity of 300 ml. This is sufficient to operate for 8 hours at
the maximum heating level. Proceed as follows to fill the water tank:
1. Press the release button on the water tank and pull it out sideways.
2. Turn the humidifier air outlet upwards for filling.
3. Hold the water tank horizontally and fill it up to the MAX mark. If possible,
use cold and soft water of drinking quality.
