N
ZMU05533

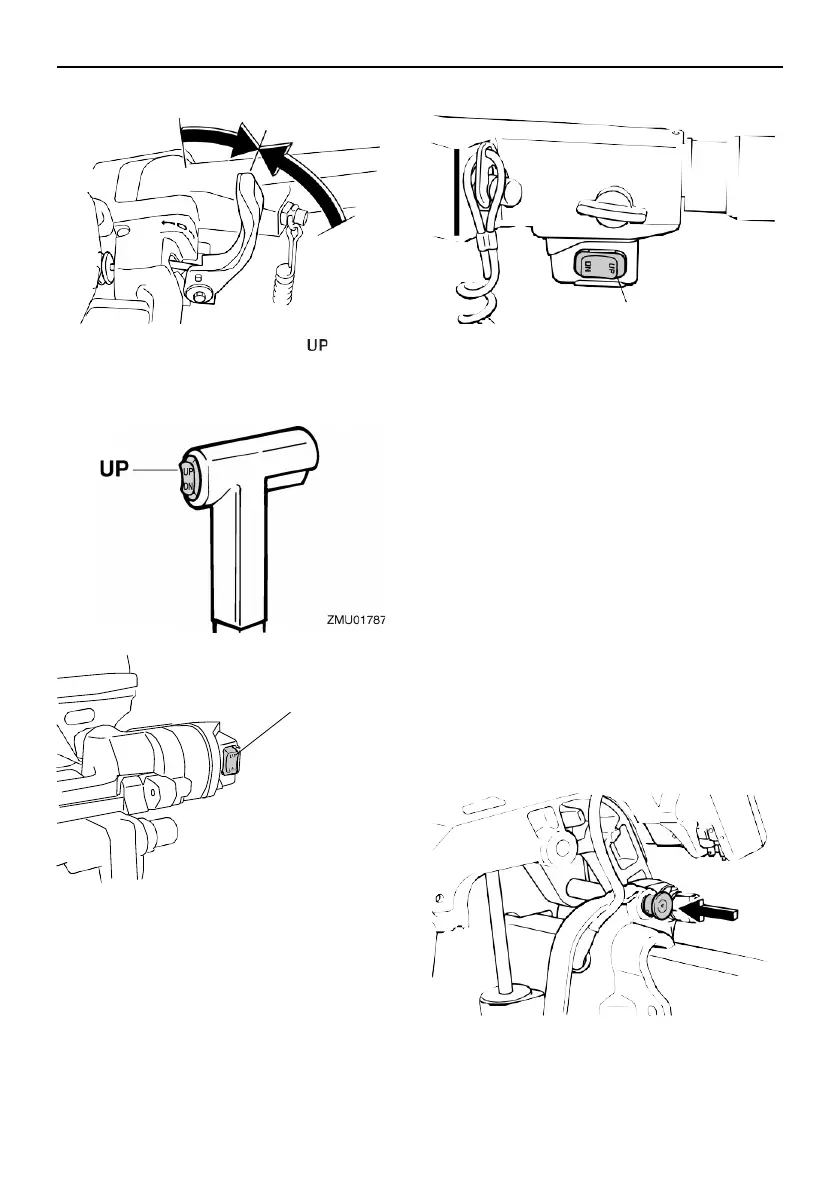

2. Press the power tilt switch “ ” (up) until
the outboard motor has tilted up com-
pletely.
UP
3. Push the tilt support knob into the
clamp bracket to support the engine.
WARNING! After tilting the outboard
motor, be sure to support it with the
tilt support knob or tilt support lever.
Otherwise the outboard motor could
fall back down suddenly if oil in the
power trim and tilt unit or in the pow-
er tilt unit loses pressure. [EWM00262]
NOTICE: Do not use the tilt support
lever or knob when trailering the
boat. The outboard motor could
shake loose from the tilt support and
fall. If the motor cannot be trailered
in the normal running position, use
an additional support device to
secure it in the tilt position. For more
detailed information, see page 67.
[ECM01641]
4. Models equipped with trim rods: Once
the outboard motor is supported with
the tilt support lever, press the power
tilt
