5. Thrust washer
3. Remove the propeller, washer (if
equipped), and thrust washer.
HD30672

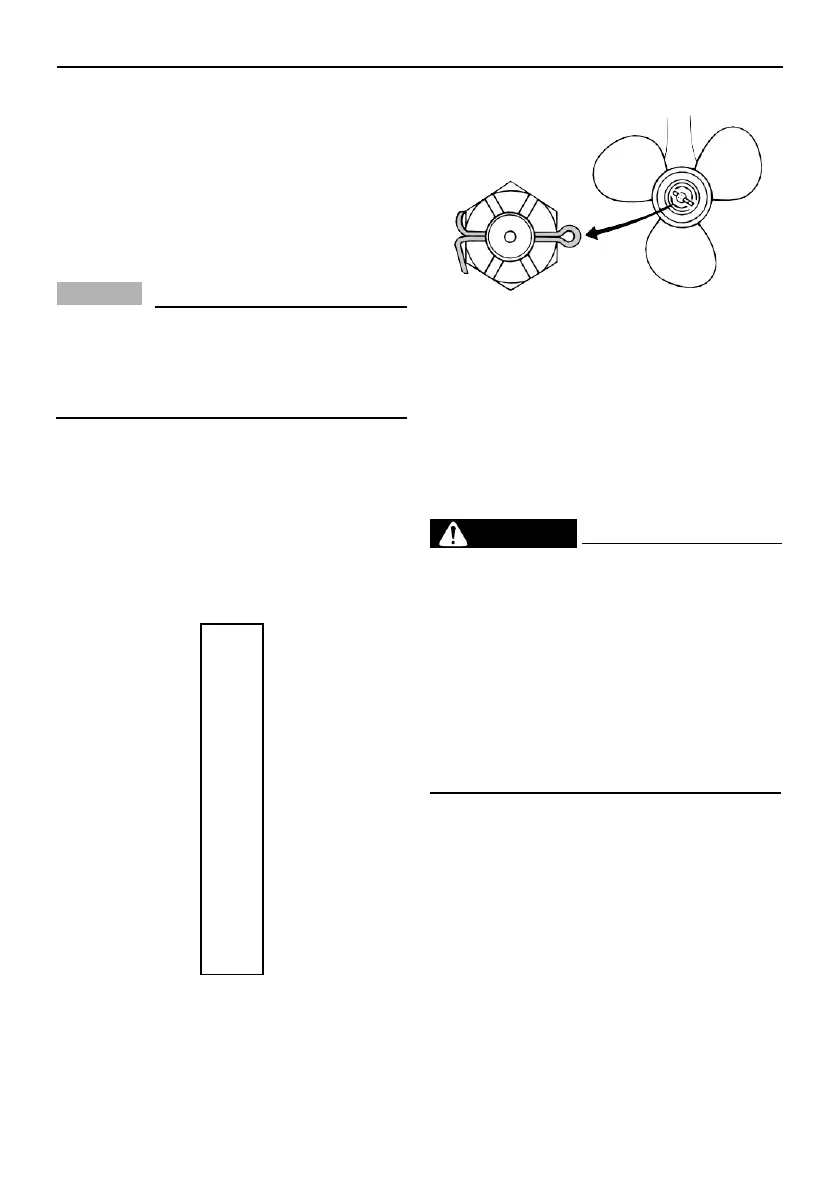

Installing propeller
HD29234
Spline models
ECM00501
NOTICE
Make sure to use a new cotter pin and
bend the ends over securely. Otherwise,
TIP:
the propeller could come off during
oper- ation and be lost.
1. Apply Hidea marine grease or a corro-
sion resistant grease to the propeller
shaft.
2. Install the spacer (if equipped), thrust
washer, washer (if equipped), and pro-
peller on the propeller shaft. NOTICE:
Make sure to install the thrust
washer before installing the
propeller. Other- wise, the lower
case and propeller boss could be
damaged. [ECM01881]
3. Install the spacer (if equipped) and the
washer. Tighten the propeller nut to the
specified torque.
Propeller nut tightening torque:
17.0 Nm (1.73 kgf-m, 12.5 ft-lb)
4. Align the propeller nut with the
propeller shaft hole. Insert a new cotter
pin in the hole and bend the cotter pin
ends. NOTICE: Do not reuse the
cotter pin. Otherwise, the propeller
can come off during operation.
[ECM01891]
If the propeller nut does not align with the
propeller shaft hole after tightening to the
specified torque, tighten the nut further to
align it with the hole.
Changing gear oil
Be sure the outboard motor is
securely fastened to the transom or a
stable stand. You could be severely
injured if the outboard motor falls on
you.
Never get under the lower unit
while it is tilted, even when the tilt
support lever or knob is locked.
Severe injury could occur if the
outboard motor accidental- ly falls.
1. Tilt the outboard motor so that the gear
oil drain screw is at the lowest point
pos- sible.
2. Place a suitable container under the
gear case.
3. Remove the gear oil drain screw and
gasket. NOTICE: If there is an exces-
sive quantity of metal particles on
the magnetic gear oil drain screw,
this can indicate lower unit problem.
Con- sult your Hidea dealer. [ECM01900]
