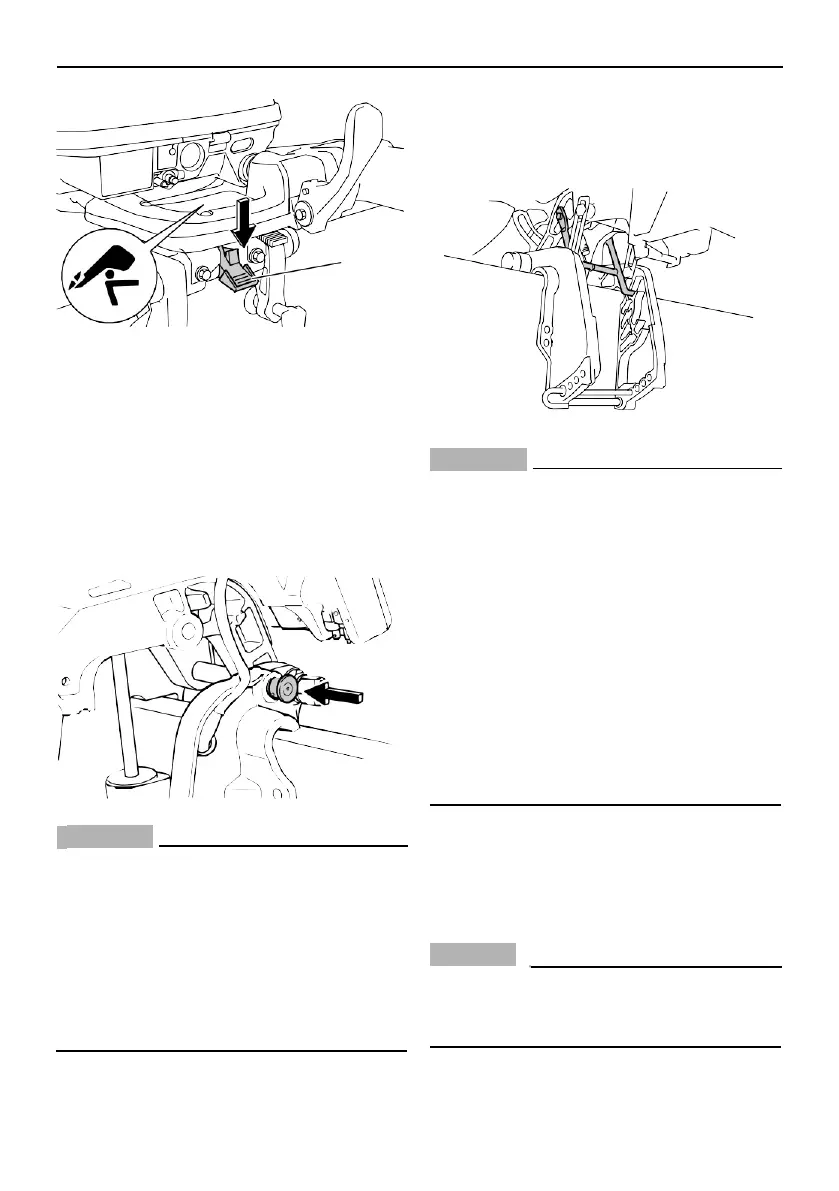

Tilt support bar
The tilt support bar keeps the outboard motor
in the tilted up position.
1. Tilt lock lever (Release / tilt-up)
To lock it, set the tilt lock lever in the lock
po- sition. To release, push the tilt lock
lever in the release position.
ECM01660
ZMU05528
Tilt support knob
To keep the outboard motor in the tilted up
position, push the tilt support knob under
the swivel bracket.
NOTICE
Do not use the tilt support lever or knob
when trailering the boat. The outboard
motor could shake loose from the tilt
sup- port and fall. If the motor cannot be
trail- ered in the normal running
position, use an additional support
device to secure it in the tilt position.
NOTICE
Do not use the tilt support bar when
trailering the boat. The outboard motor
could shake loose from the tilt support
and fall. If the motor cannot be trailered
in the normal running position, use an
addi- tional support device to secure it in
the tilt position.
Power tilt unit
This unit tilts the outboard motor up and
down and is controlled with the power tilt
switch.
NOTICE
Do not step on or exert pressure on the
power tilt motor. The power tilt unit
could be damaged as a result.
