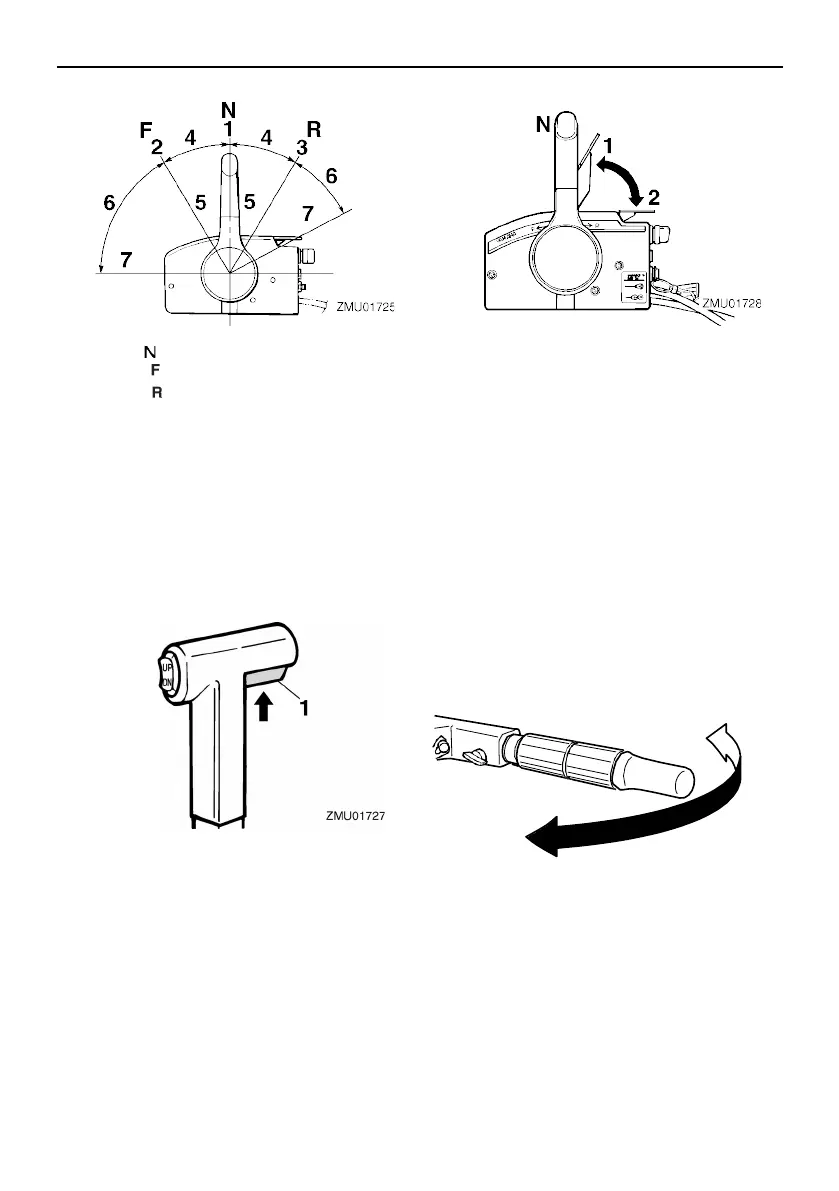

1. Neutral “ ”
2. Forward “ ”
3. Reverse “ ”
4. Shift
5. Fully closed
6. Throttle
7. Fully open
Neutral interlock trigger
To shift out of neutral, first pull the neutral
in- terlock trigger up.
1. Neutral interlock trigger
1. Fully open
2. Fully closed
TIP:
The neutral throttle lever will operate only
when the remote control lever is in neutral.
The remote control lever will operate only
when the neutral throttle lever is in the
closed position.
Tiller handle
To change direction, move the tiller handle to
the left or right as necessary.
ZMU01997
Neutral throttle lever
To open the throttle without shifting into ei-
ther forward or reverse, put the remote con-
trol lever in the neutral position and lift the
neutral throttle lever.
Gear shift lever
Move the gear shift lever forward to engage
the forward gear or rearward to engage the
reverse gear.
26
