VC3000Pro Series Vision Controller User Manual
9

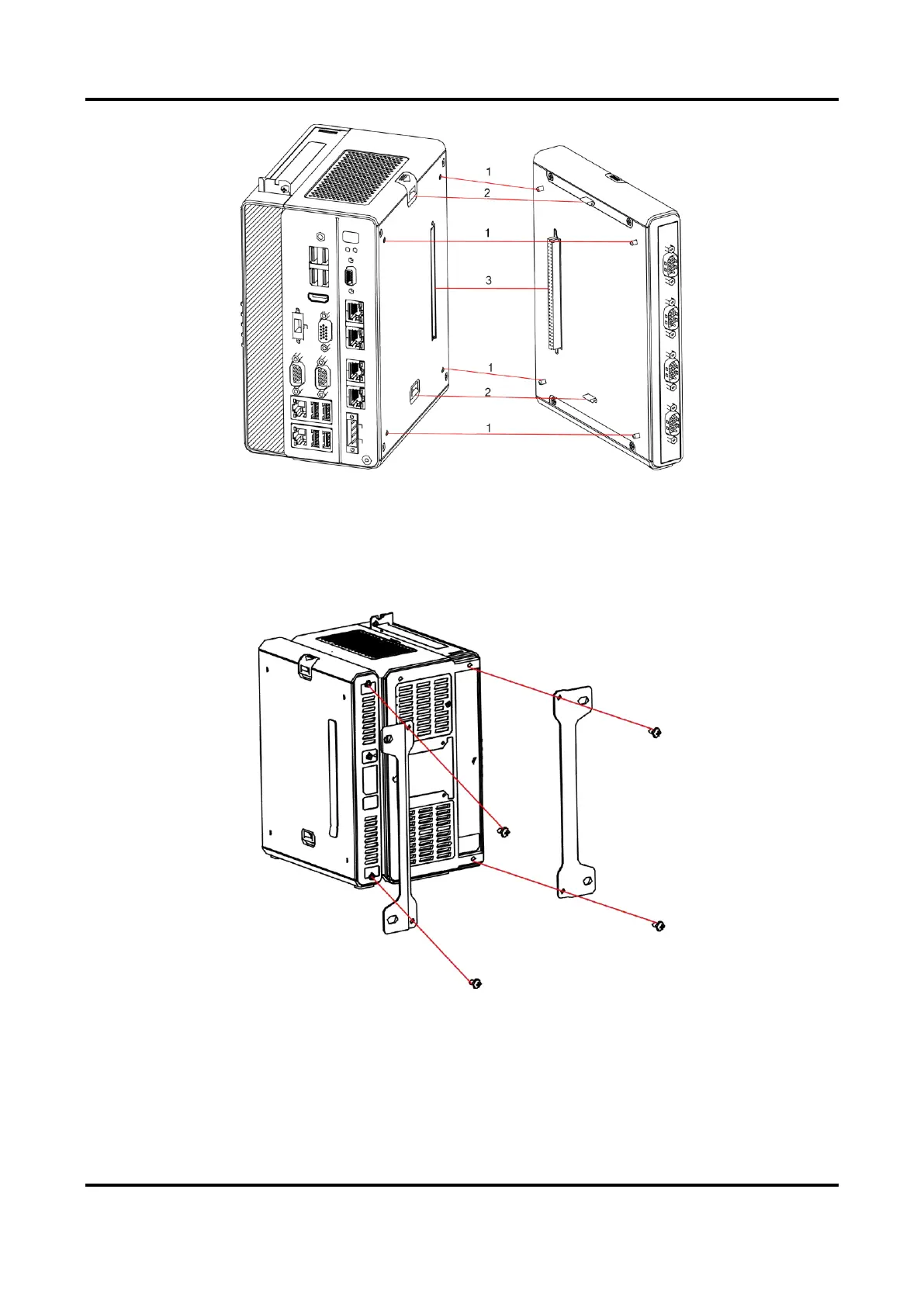

Figure 3-3 Install Extended Module to Main Module
2. Fix the device to the mount plate.
–
Use four M4 screws to vertically mount the device to the mount plate.
–
Use five M3 screws to horizontally mount the device to the mount plate.
3. Fix the device to other mechanical structures via the mount plate or bracket.
Figure 3-4 Vertical Installation
