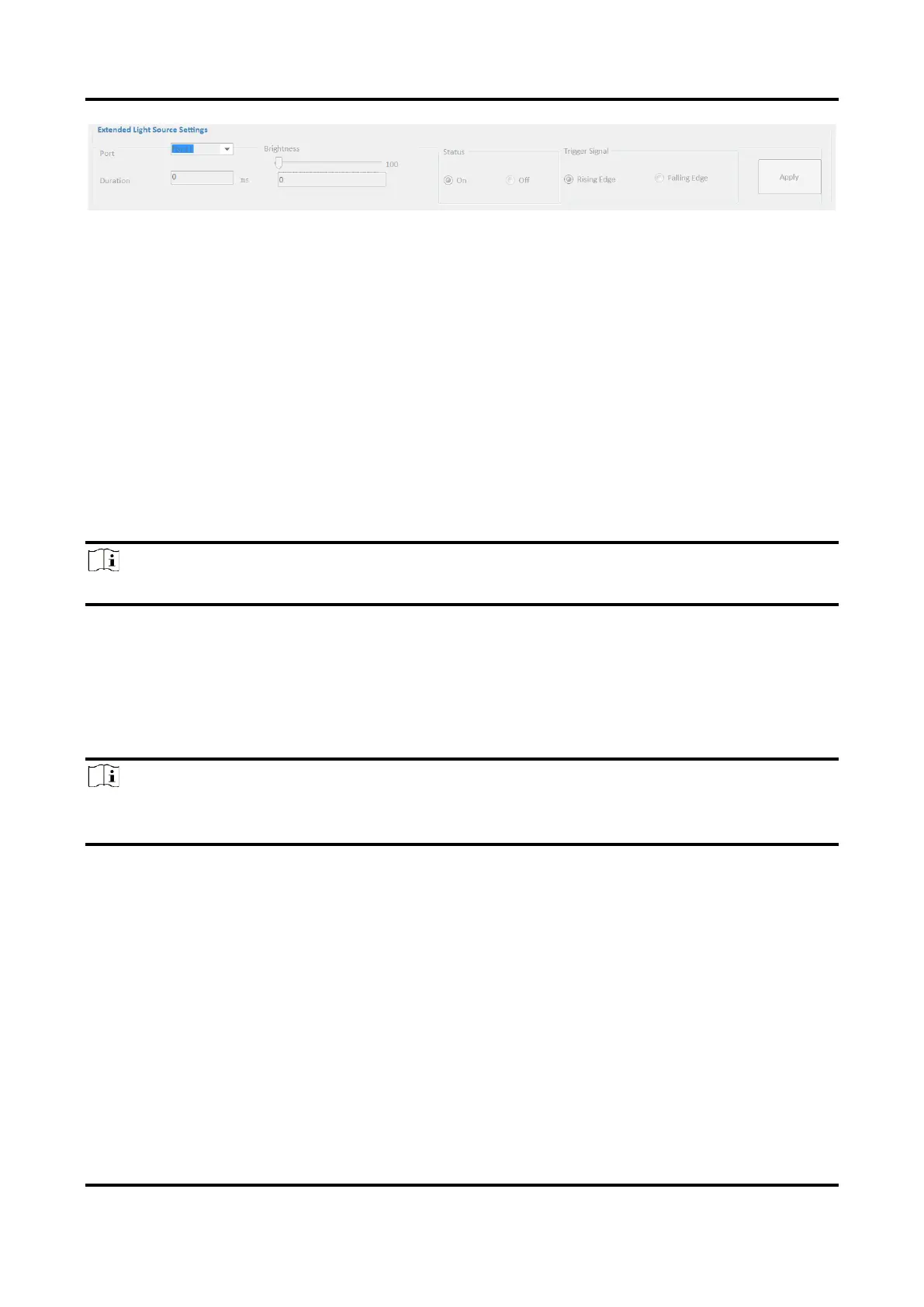

Figure 5-3 Set Light Source Extended Module
5.4 Set IO Extended Module
The IO extended module settings allows you to set the input and output parameters of the IO
extended module. You can detect the electrical level of the input signal, select the output port and
the output mode, and enable output, etc.
Input Settings
Select Port ranging from Port 1 to Port 8, set Trigger Signal and Upload Signal according to actual
demands.
Enter Trigger Delay and Debouncer Time to delay the trigger signal received time, and to filter out
unwanted short input signals respectively. Click Apply after settings.
Note
The range of Trigger Delay and Debouncer Time is both from 0 ms to 65535 ms.
Click Detect in Input Signal Detection to get the electrical level of the input port. Red color stands
for the high electrical level, and green color stands for the low electrical level.
Output Settings
In Output Settings, you can set these parameters: Polarity, Port, Mode, Electrical Level, Duration,
Pulse Period, and Pulse Width. Click Save after settings.
Note
●
Pulse Period and Pulse Width are only available when you select Multipulse as Mode.
●
The range of Duration, Pulse Period and Pulse Width is all from 0 ms to 65535 ms.
After above-mentioned settings, if you want to let the port output signals, you should check the
specific port No., and click Enable. Otherwise, click Disable instead.
