VC3000Pro Series Vision Controller User Manual
17
4.1.6 Serial Port
The main module has two standard D-sub 9-pin communication interfaces. The serial ports are 2-
channel RS-232 by default. Refer to the following table for the pin definitions.
Note
Serial ports correspond to COM 1 and COM 2 in the default operating system.

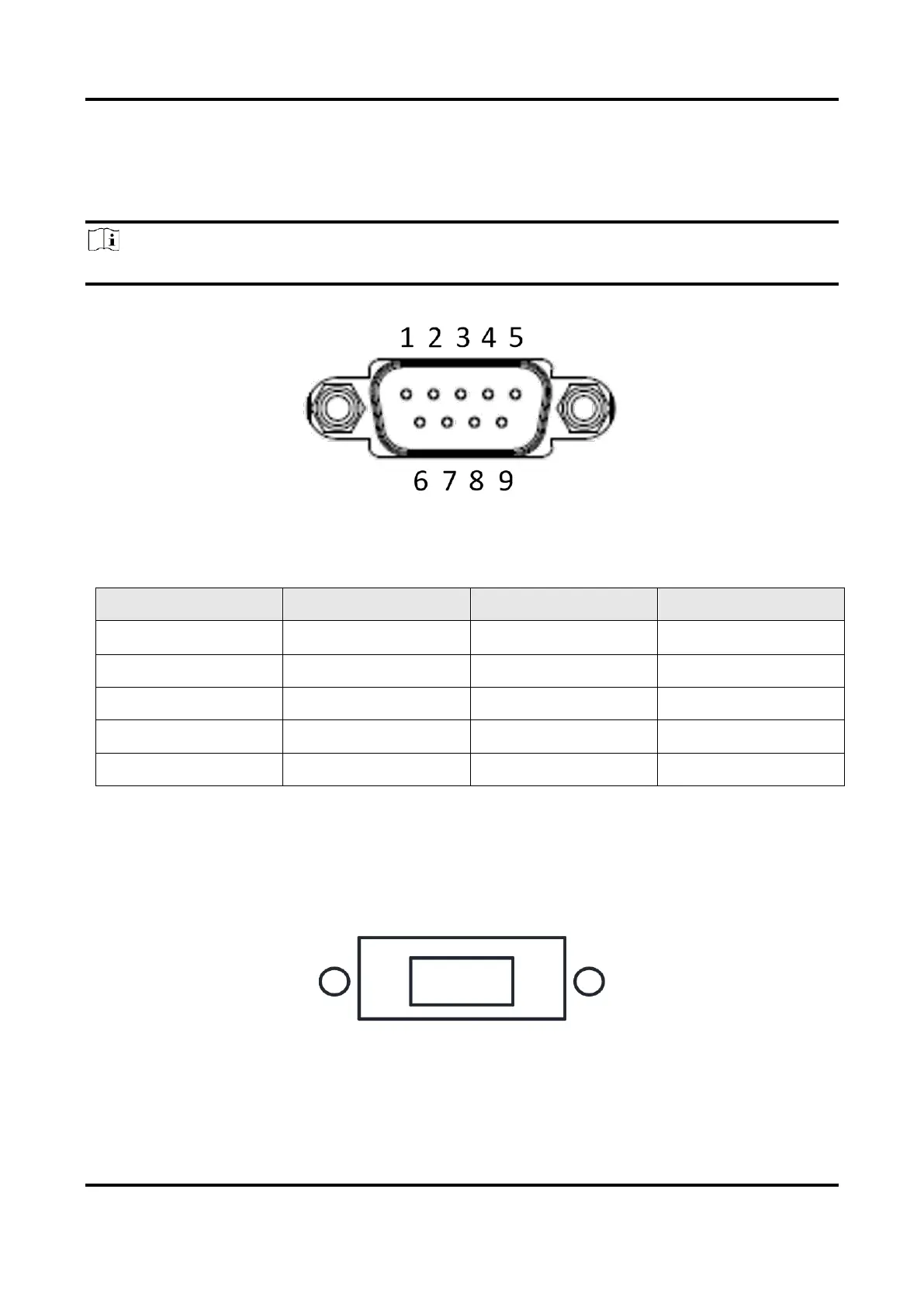

Figure 4-11 Serial Port
Table 4-2 RS-232 Pin Definitions
Pin No.
Description
Pin No.
Description
1
DCD
6
DSR
2
SIN
7
RTS
3
SOUT
8
CTS
4
DTR
9
RI
5
GND
--
--
4.1.7 Remote Switch Interface
The device’s remote switch interface is used to connect remote switch cable for remotely controlling
the device. Press it shortly to switch on the device, and press it for 4 seconds to switch off the device.
Figure 4-12 Remote Switch Interface
