DO1
DO_GND_CNN
PEXT_VDD_IN_CNN
PLC
VCC
Signal Ground
Power Supply
Ground
Power Supply

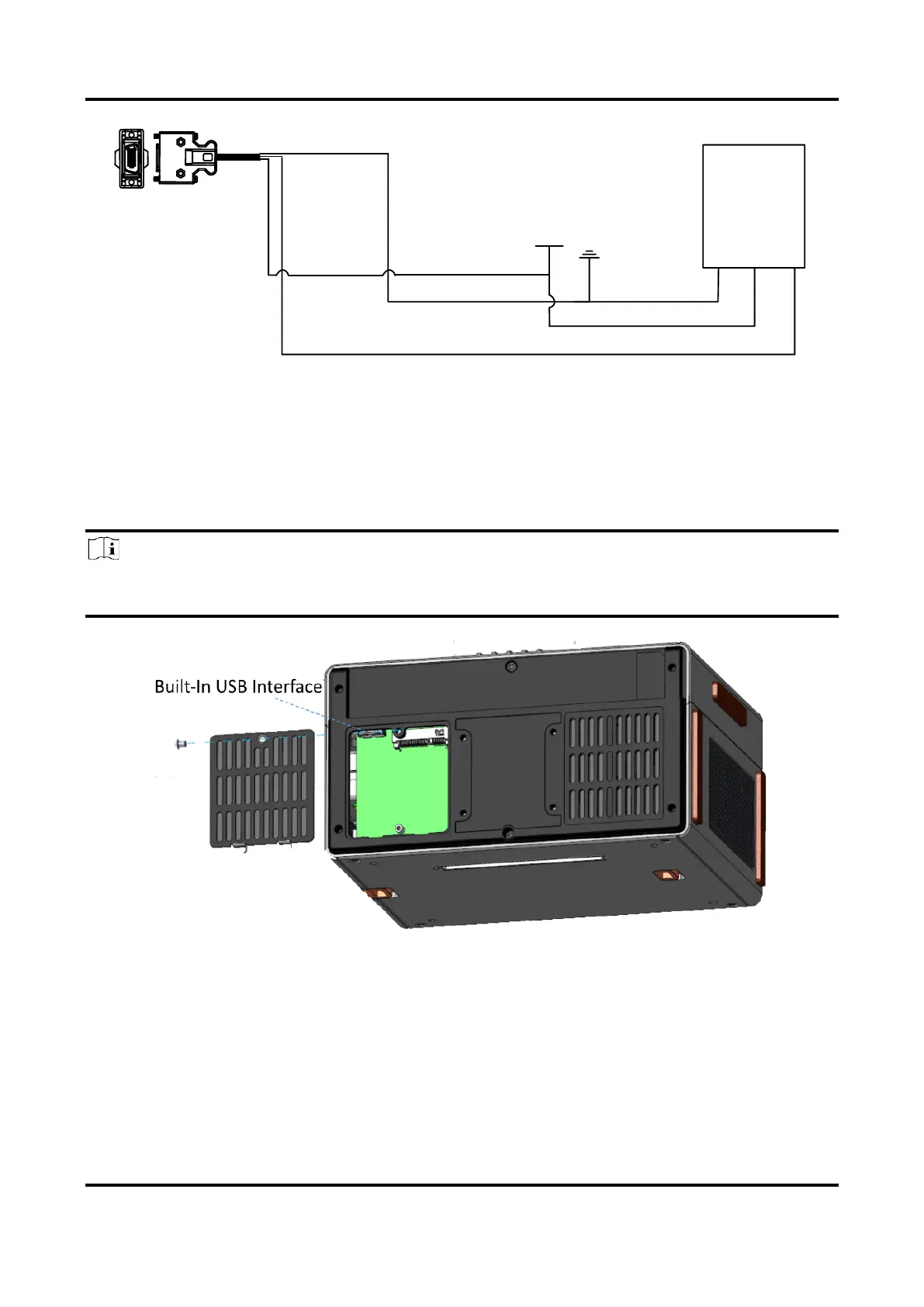

Figure 4-7 Connect to PLC
4.1.3 Built-In USB Interface
The main module has a built-in USB2.0 interface that is used to install dongle or USB flash disk. The
location of built-in USB interface is shown below.
Note
The built-in USB interface may differ by device model, and the actual product you purchased shall
prevail.
Figure 4-8 Built-In USB Interface
4.1.4 mSATA Interface
The main module has a built-in mSATA interface that is used to connect the SSD (Solid State Disk).
The location of the mSATA interface is shown below.
